| Title： | DAC1220 Data Acquisition Module 20 bit DAC 16 bit Adjustable ±10V Voltage Module | ||
| Module Introduction: |

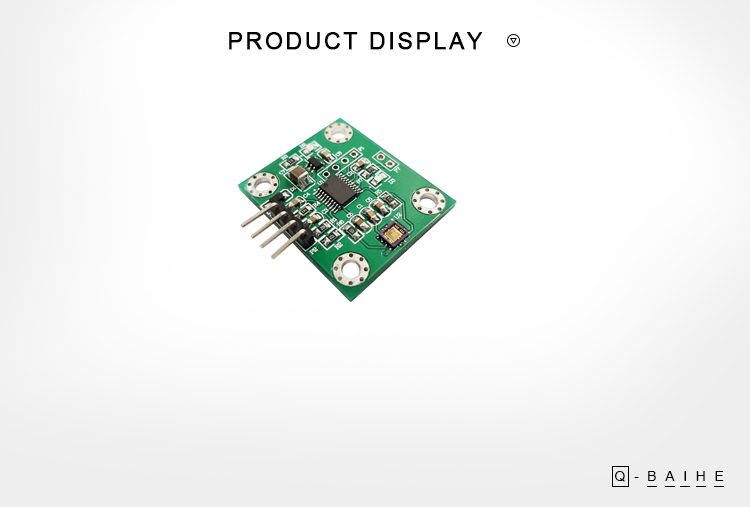

This UV detection module can easily read the UV index through commands and uses the universal ML8511 UV sensor component, which can be used to detect indoor or outdoor environments
External ultraviolet density. The output analog voltage of ML8511 is proportional to the amount of UV light. No photoelectric conversion circuit is required. And it uses a small and thin surface packaging method, suitable for portable device use. This model also has a power-saving mode of up to 0.1uA, suitable for use on smart wearable and mobile devices.
|
||
| Specifications: |
Power supply: 5V
Baud rate: 9600
Sensitive areas: UV-A,UV-B
Sensitive wavelength: 280~390nm
UV intensity measurement range: 0~15000uw/cm2
UV index detection range: 0~10+
Module size: 32mm * 27.5mm
Working temperature:- 20~70℃
Storage temperature:- 30~85℃
|
||
| Wiring method: |
TXD: The sender, usually referred to as one's own sender, must be connected to another for normal communication
The RXD of the device.
RXD: The receiving end, generally referred to as one's own receiving end, must be connected to another for normal communication
The TXD of the device.
During normal communication, the TXD itself is always connected to the RXD of the device!
|
||
| Packing: | 1* UV Detection Module | ||
| Price | $22.00 |
|---|---|
