Specification:
Output Power 80-100mw
Wavelength 532nm
Working Voltage 12v
Working Temperature -10 degrees~+40 degrees
TTL yes(0-20khz)
Laser Shape Dot
Focusable N/A
Material and Color all metal
Beam Diameter:<3mm
Divergency:<1.2mrad
Waterproof N/A
Dimensions head: 30x30x55mm
Currancy board size: 72x36x11.6mm
Feature

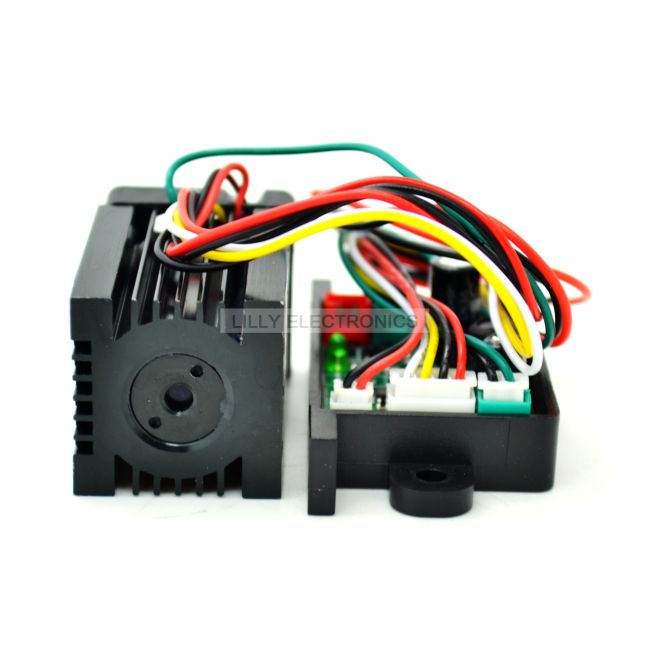

532nm green laser module!
it uses 12v voltage to drive!
Pure green ray laser!
The power range of this laser is 80mw-100mw! With cooling fans! When the temperature of the laser is more than 35°C, the fans starts to work and release the heat.
When the temperature of the laser when is -10°C, it will automatically increase the temperature, which helps the laser get a better working temperature.
If you want to operate this module for a very long time, you must add addtional fans for it to keep its working temperature under 30°C. Without fans, it can work contiunously for 10 minutes. If working Longer than 10 minutes, the laser module's output power will be reduced.
Package:
1 x 12V 532nm 80mw-100mw Green Laser Dot Module w Auto Temp Control and TTL 0-20khz
