Details
Features:
Wavelength: 532nm
Output power: 95-120mW
Laser Shape: Dot
Cooling methods: Fan cooling
Modulation frequency: TTL 0-30K HZ
Working Method: continuous work
Color: Black
Material: Aluminum
Circuit control: constant control
Reverse polarity protection: Yes, with automatic identification of positive and negative
Operating voltage: DC = 12V
Operating Current: I <500mA
Warm up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage Temperature: -10 ° C to +40 ° C
Structure: laser diode + lens + cooling Housing
Laser Module Size: 74x30x30mm
Circuit Board size: 71.5x35x20mm
NOTE:

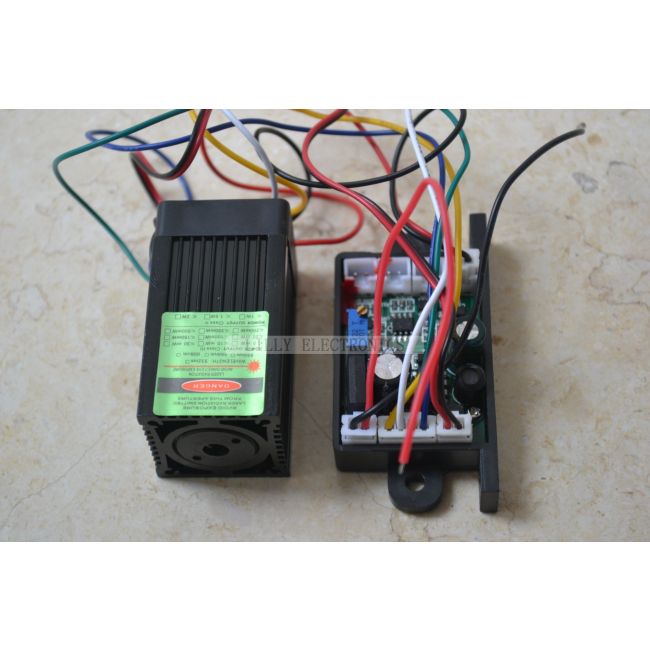

The 532nm 100mw Laser dot module is composed of 2 parts, Laser head (Laser diode+ housing +lens)and its driver circuit board. the laser head brings with fan cooling.
The input voltage is 12V, an over-specified voltage will lead to damage of circuits and modules, if you have any technical problems, please contact us, thank you!
This laser module can work for a long time!
Please aviode direct eye exposure to the laser beam, please wear 532nm protection glasses when working on this laser module!
Package:
1 x 12V 532nm 100mw Green Laser Dot Module Fan Cooling TTL 0-30KHZ-Long time working
