| Title： |

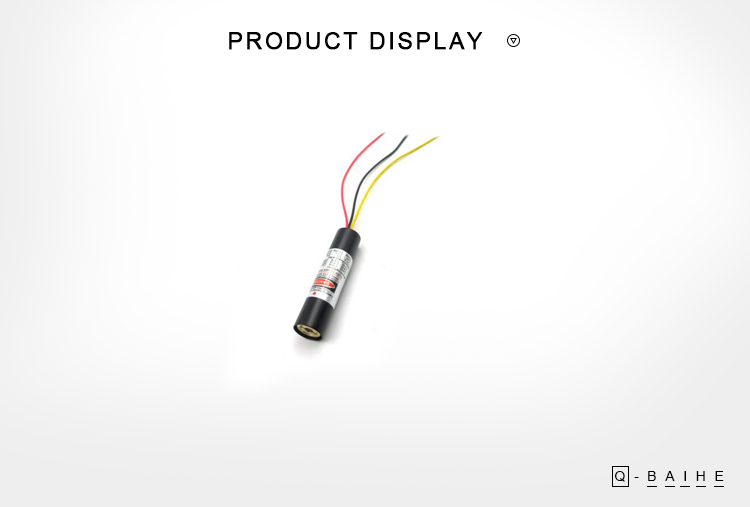

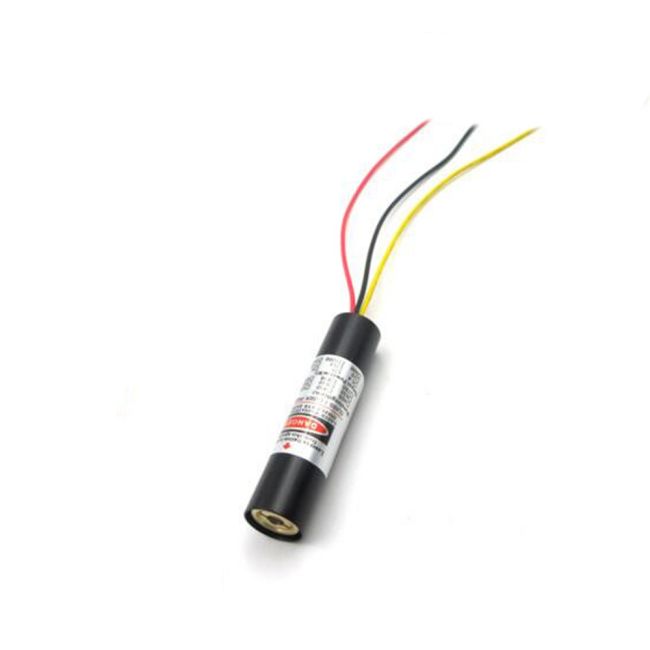

515nm 520nm 10mW 30mW 50mW 80mW Green Lase TTL Modulated Dot Laser Module Laser |
||
| Dimensions: |
φ12 * 50mm |
Output Wavelength: |
520nm ± 5nm |
| Output Power: |
10mW 30mW 50mW 80mW |
Working Voltage: |
DC 2.8-5.2 (V) Can Be Customized |
| Specifications: |
Power: 10mW
Working current: ≤ 200mA Light distance: During the day, indoor shooting can reach 0-700 meters
During the day, you can hit 0-250 meters outdoors
Can reach 0-2500 meters in dark environments
Power: 30mW
Working current: ≤ 300mA Light distance: During the day, indoor shooting can range from 0 to 1500 meters
During the day, you can go 0-400 meters outdoors
Can reach 0-4000 meters in dark environments
Power: 50mW
Working current: ≤ 400mA Light distance: During the day, indoor shooting can range from 0 to 2000 meters
During the day, you can go 0-500 meters outdoors
Can reach 0-5000 meters in dark environments
Power: 80mW
Working current: ≤ 600mA Light distance: During the day, indoor shooting can reach 0-2500 meters
During the day, you can hit 0-600 meters outdoors
Can reach 0-6000 meters in dark environments
|
||
| Advantage: | 1. Modulation frequency range 0—50KHZ (can be customized) 2. The spot size can be adjusted from 1mm to several centimeters to meet your different usage requirements. 3. The outer casing is aerospace aluminum-plated insulating varnish, which can fully dissipate heat and shockproof and anti-static 4. Laser diode direct illumination, high stability, can be turned on 24 hours a day 5.IC's intelligent driver board can be 2.8-5.2V ultra-wide range power supply (other voltage can be customized) 6. High temperature resistant Corrosion resistant DC plug wire Suitable for all-weather use 7. Wavelength Power Wire length Working distance Spot effect, etc. can be customized according to customer requirements |
||
| Package: |
1*520nm Laser Module |
||
| Price | $118.00 |
|---|---|
| Price View | As Low as |
