Please note that this module will be customized for 7-10 days.So we can't ship it out until 7 days later.Kindly please understand us!
Features:
Miniature size
Collimated straight beam
Adjustible focuse
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Specifications:
Model No.:LSR532NL
Wavelength:532nm
Spatial Mode:TEM00
Output Power:500mw
Residual IR (946, 1064&808nm)<0.01%
Operation Mode:CW or Modulation
Modulation:0~30khz Analog or TTL (Optional, please note to us if you need Analog or TTL, we will send Analog as default )
Beam Spot Shape:Circular, aspect ratio<1.1:1
Pointing Stability:<0.05 mrad
Beam Diameter(1/e2):<2.5 mm
Beam Divergence(full angle):<1.5 mrad
Power Stability:<±5% per 4 hrs
Temperature Stabilizing:TEC
Warm Up Time:<1 minute
MTTF:10,000 hrs
Laser head dimensions:100(L)x40(W)x50(H)mm3 (fan adds height)
Power Supply (Optional, note to us which type you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default)
A. OEM type
LSR-PS-I: 100(L)x58(W)x32(H)mm3
AC/DC PSU: 85~265V 50/60Hz input
B. Lab type
LSR-PS-IIS: 104(W)x128(D)x89(H)mm3
85~265V 50/60Hz input
C. Lab Adjustable type
LSR-PS-IIS: 179(W)x148(D)x56(H)mm3
85~265V 50/60Hz input
Modulation:0~30khz Analog or TTL
Pakage:
1 X 500mW 532nm Green Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
Warranty:
1 Year (buyer paid both shipping ways)

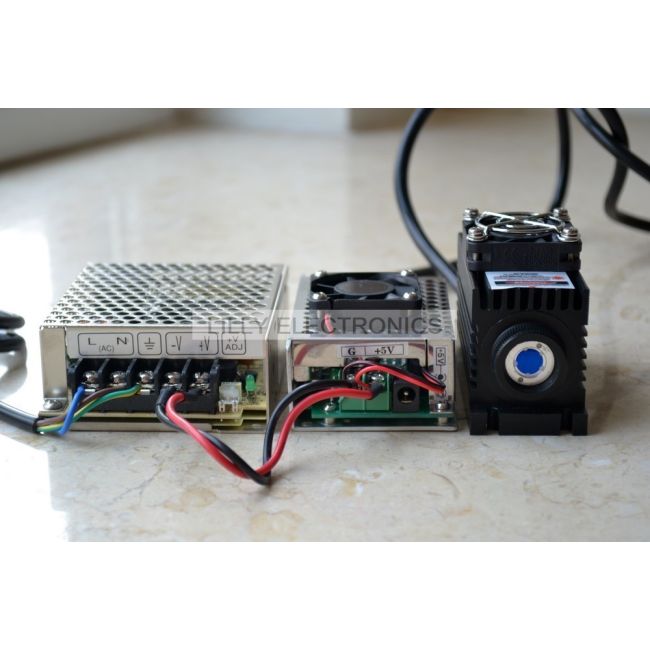

Pleae let us know which kind of power supply do you need, we have 3 different kinds of power supply with pictures shown as below, we will send you the power supply instruction manual.
A. OEM type power supply LSR-PS-I+5V PSU (The power supply type in the bid)
B. Lab type power supply LSR-PS-IIS
C. Lab Adjustable power supply LSR-PS-II
