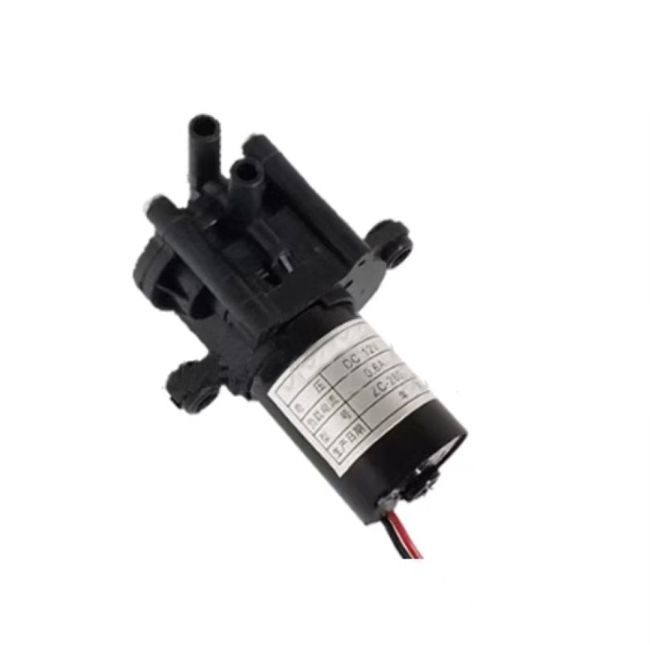

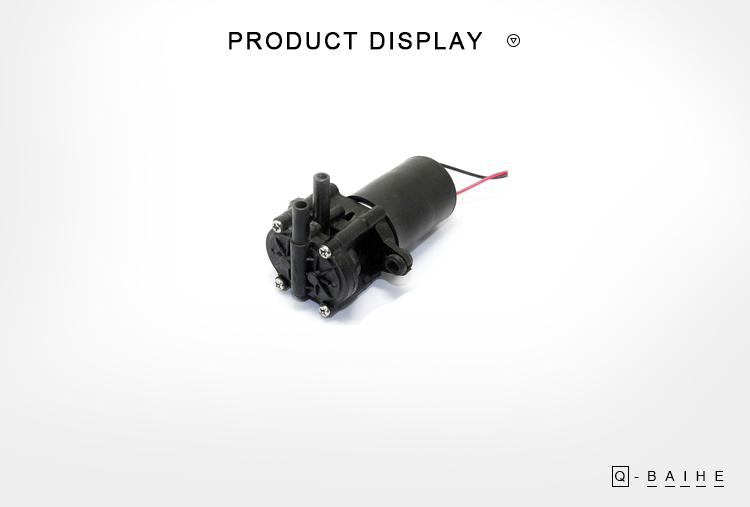

ZC-280 12V 24V Supercharged Brushless Water Pump /Oil Pump/Plastic Gear Hot Water Pump /DC Circulation Pump /Medical Equipment Gear Pump
A280-12V:
1. Rated voltage: 12V 2. Operating voltage: DC6V-12V 3. No-load rated current: within 0.75A 4. No-load water discharge: 1900cc±10% 5. Pressure: 3.5Kg±10% 6. Rated current under load: 0.8A~1.2A 7. Rated water discharge under 1KG load: 1200CC±10%/min 8. Suction range: within 1.0M 9. Noise: 50dB MAX (background noise 30dB, within 0.5M) 10. Use fluid: tap water, groundwater 11. Water temperature: 0°C ~ 100°C 12. Ambient humidity: 45%~85% 13. Continuous working life of more than 5000 hours 14. Motor: brushless motor
A280-24V:
1. Rated voltage: 24V 2. Operating voltage: DC12V-24V 3. No-load rated current: within 0.35A 4. No-load water discharge: 1900cc±10% 5. Pressure: 3.5Kg±10% 6. Rated current under load: 0.5A~0.9A 7. Rated water discharge under 1KG load: 1200CC±10%/min 8. Suction range: within 1.0M 9. Noise: 50dBMAX (background noise 30dB, within 0.5M) 10. Fluid used: tap water, groundwater 11. Water temperature: 0°C~100°C 12. Ambient humidity: 45%~85% 13. Continuous working life of more than 5000 hours 14. Motor: brushless motor
Remarks:
Power cord length: according to user requirements The water pump cannot be used continuously for a long time at high temperature Can be customized according to user requirements and designed according to customer requirements
Purpose:
This product adopts a deceleration and torque increase structure, driven by a brushless motor, and has the characteristics of small volume and high pressure. This product adopts a deceleration and torque increase structure, driven by a brushless motor, and has the characteristics of small volume and high pressure. It is suitable for occasions where the medium is transported intermittently. It is widely used in chemical corrosion-resistant water pumps. Drinking fountains, medical equipment ozone-resistant self-priming pumps, food and other departments, pesticides, water treatment, sprayers, electrical appliances, experimental factories, etc.
Package:
1pc ZC-A280 Gear Self-Sucking Pump
