| Title： |

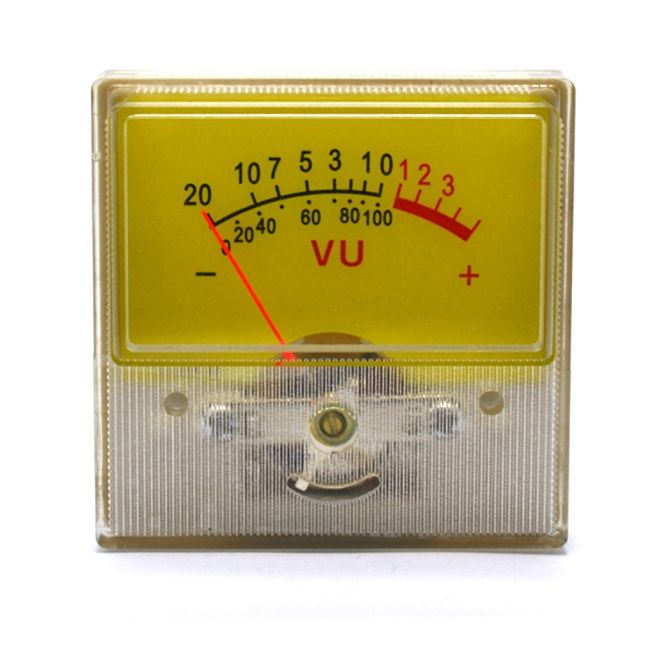

SD-H-2136 Panel Meters Sound Measuring Instrument (DC 500uA) for Audio Equipment |
||
|
Table core structure: |
magnetoelectric system (√) |
Pointer material: |
nickel white copper |
|
Color: |
White |
Length: |
21.5 (±1mm) |
|
Width: |
0.35 (±1mm) |
Pointer deflection direction: |
deflection clockwise from left to right. |
|
Cover material: |
PMMA (transparent) |
Lower cover material: |
ABS white |
|
Nameplate material: |
PC |
Magnet: |
LF-201 |
|
Meter use position: |
Vertical use |
Internal DC impedance of the meter head: |
650Ω±10% |
|
Friction error: |
±1mm |
Balance error: |
±1.5mm |
|
Relative error: |
±5% |
Damping time: |
2-3 seconds |
|
Insulation strength: |
above 50MΩ | Calibration value: | ±2.0% |
|
Light bulb: |
No internal light bulb | ||
| Package: |
1*1*H-2136 sound measuring instrument |
||
| Price | $15.50 |
|---|---|
| Price View | As Low as |
