RGB Synthetic White 520-450-638nm 500mW Red Green And Blue Laser Drive Circuit

Be the first to review this product

was $25.70 Special Price $23.70

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.

Availability:

In stock

SKU

DR-520-450-638-500mW

Details

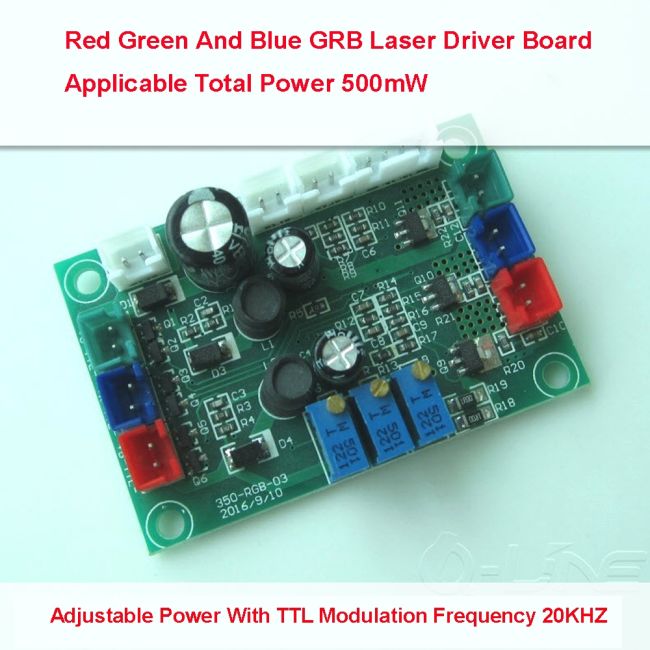

RGB Synthetic White Light 520-450-638nm 500mW Red Green And Blue Laser Drive Circuit TTL Modulation

Title：	RGB Synthetic White Light 520-450-638nm 500mW Red Green And Blue Laser Drive Circuit TTL Modulation
Circuit Control:	step-down circuit, constant current output	Modulation output:	TTL
Printing instructions:	R means red light, G means green light, B means blue light	Power recommendation:	red light 150mW green light 250mA blue light 200mA
Size specifications:	4263.5mm (width length), the height of the component including the board 22mm	Input voltage:	12V
Fan voltage:	12V
The pin description is as follows:	This circuit board can drive green light + red light + blue light at the same time, and there is a printed logo on the wiring definition board. If there is something unclear during use, please contact customer service.
Package:	1 * Laser Driver Board
