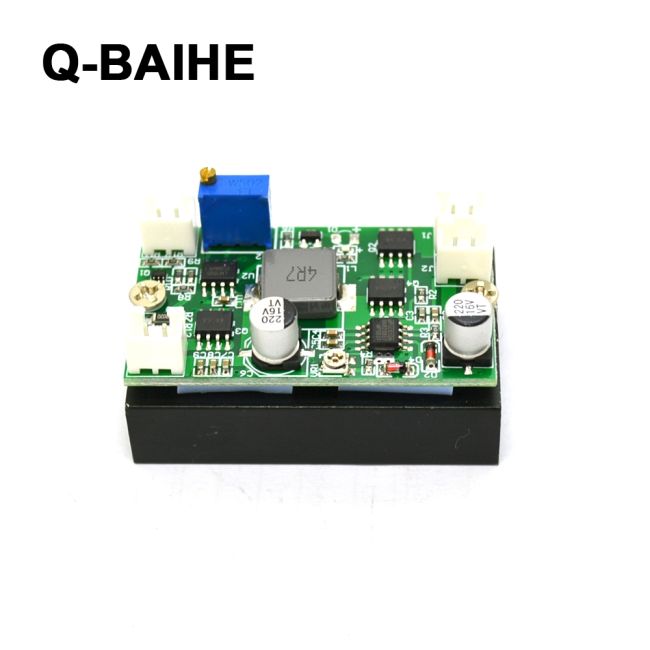

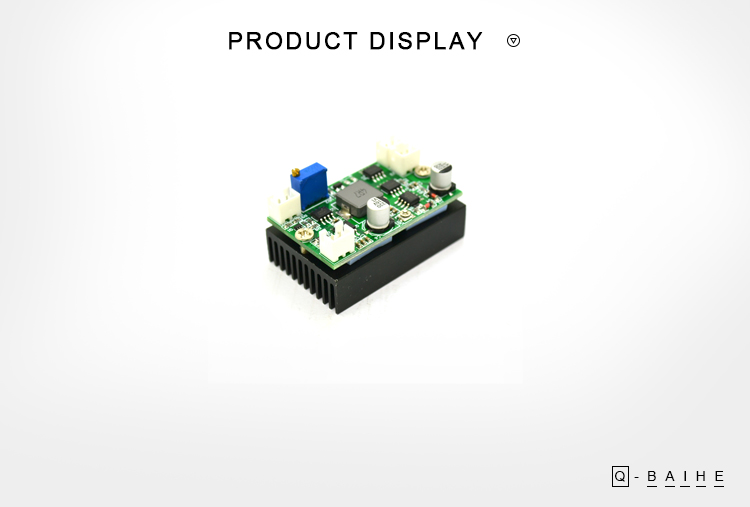

| Title： | NUBGM08 03 05 07 0A 3-5W 445nm Blue Light 12V Step-down Constant Current Drive Circuit TTL Modulation | ||
| Circuit control: | 12V step-down circuit, constant current output (current and voltage are adjustable) | Output specifications: | Max 5A |
| Scope of application: | 1W-3W-4.75W 405/445/450/520nm red, green and blue laser drive circuit | Size specifications: | 32.5*50mm (width * length), the height of the component contains 24mm aluminum base |
| Frequency control: |
0-20Khz
(TTL modulation description: 0-5V voltage signal (0 is off, 5 is on, the frequency determines the speed of the laser light flashing))
|
Modulation voltage: | 0-5V (0V off, 5V on) |
| Input voltage: | DC=8-14V | ||
| Notice: |
(Please do not use unqualified power supplies, such as batteries and lithium batteries in series, without a power supply with constant voltage output) |
||
| Package: |
1*Voltage constant current drive board |
||
