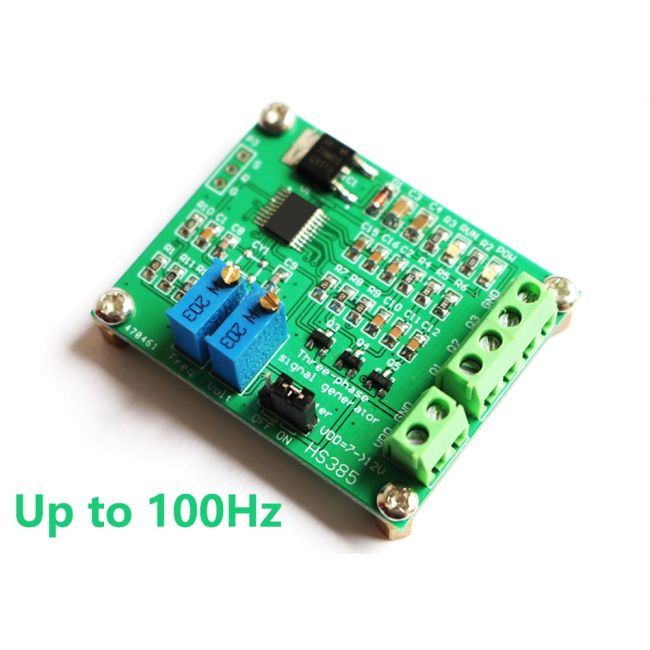

Title：	HS385 10Hz to 100Hz Three Phase 7-12V Sine Signal Generator Module
Overview:	This is a three-phase sine signal generator, which can also control the amplitude. Up to 100Hz sine wave
Specification:	1 Output frequency range :10～100 Hz 2 Output frequency resolution :0.1 HZ 3 Signal amplitude :3～5 VDC ,Maximum amplitude 5.0Vpp 4 Working voltage: 7~12V VDC 5 Working current: <50 mA 6 size: 483910 mm --------------------------------------------- 4. interface description and related operations P1 interface (power interface) VDD: The positive pole of the power supply. GND: The negative pole of the power supply. --------------------------------------------- P2 wiring definition: No. Symbol Meaning 1 Q3 C phase signal output 2 Q2 B phase signal output 3 Q1 A phase signal output 4 GND Power negative (ground wire) --------------------------------------------- P3 interface (not used) Potentiometer operation RV1: Set the output frequency. RV2: Set the output voltage. P1 jumper: turn on or turn off the output filter. ---------------------------------------------
Application:	● Three-phase sine wave generation; ● Signal generator;
Package:	1*Three-Phase Sine Generator Module
