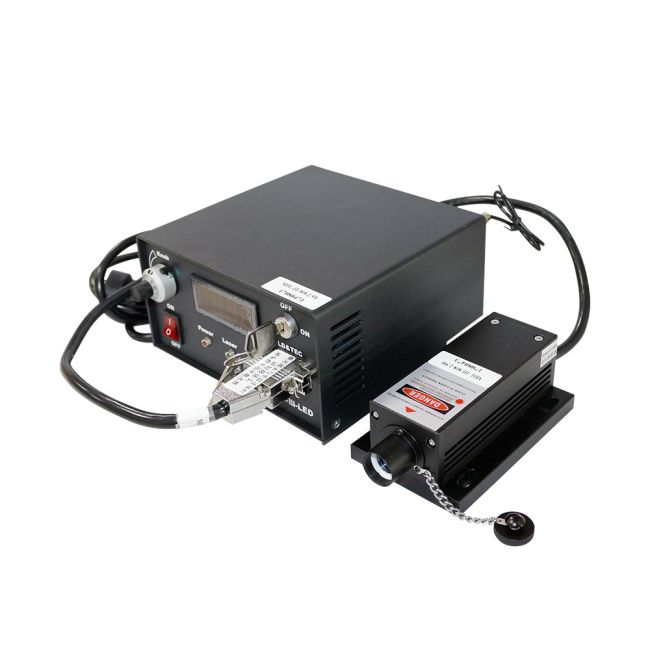

MDL-XF-808nm 10W Near Infrared Semiconductor Laser Module ( PSU-H-LED Power Supply)
Specifications:
Central wavelength (nm) ：808±5
Operating mode：CW
Output power (mW) ：>8000,9000,....12000
Power stability (rms, over 4 hours) ：<1%,<2%, <3% (<0.3%, optional)
Transverse mode：Multimode
Dimensions of beam at the aperture (mm)：-5x8
Beam divergence, full angle (mrad)：<3.0
Warm-up time (minutes) ：<5
Beam height from base plate (mm)：37
Operating temperature(℃)：10-35
Power supply：100-240VAC PSU-H-LED
TTL / Analog modulation：TTL on/off,1Hz-1kHz,1kHz-10kHz,10kHz-30kHz; and Analog modulation optional
Expected lifetime (hours)：10000
The unit price is ONLY USD3245
Buy More, Save More!
