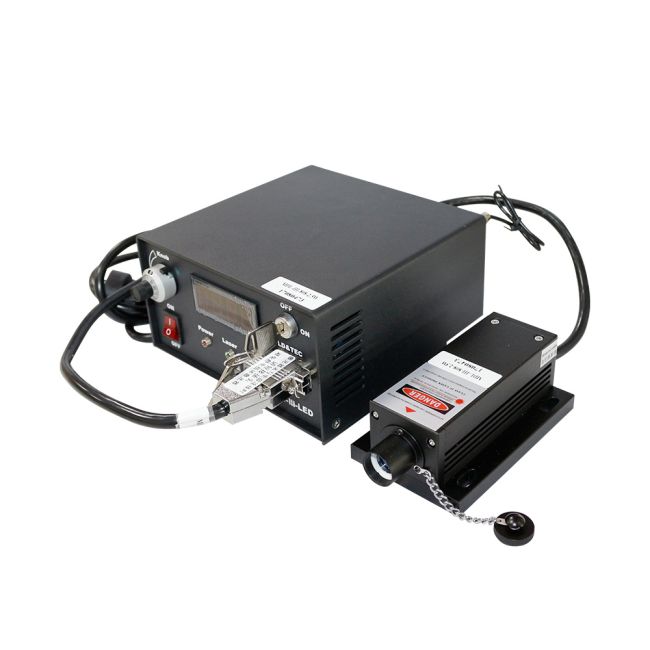

MDL-H-808nm 5000mW Near Infrared Semiconductor Laser Module ( PSU-H-LED Power Supply,0.5% Power stability )
Specifications:
Central wavelength (nm) ：808±5
Operating mode：CW
Output power (mW) ：>3000, 3100, 3200, … , 6000
Power stability (rms, over 4 hours) ：<1%,<2%, <3% (<0.5%, optional)
Transverse mode：Multimode
Noise of amplitude(rms,20Hz-20MHz)：<1%
Dimensions of beam at the aperture (mm)：-5x8
Beam divergence, full angle (mrad)：<3.0
Warm-up time (minutes) ：<5
Beam height from base plate (mm)： 29
Operating temperature(℃)：10-35
Power supply：100-240VAC PSU-H-LED
TTL / Analog modulation：TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional
Expected lifetime (hours)：10000
The unit price is ONLY USD2782
Buy More, Save More!
