Lossless Bluetooth MP3 Audio Decoder Board Color Screen with Recording and Calling DIY Car Home Audio Amplifier Modification

Be the first to review this product

was $28.37 Special Price $23.62

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.

Availability:

In stock

SKU

EBDZ-2854

Details

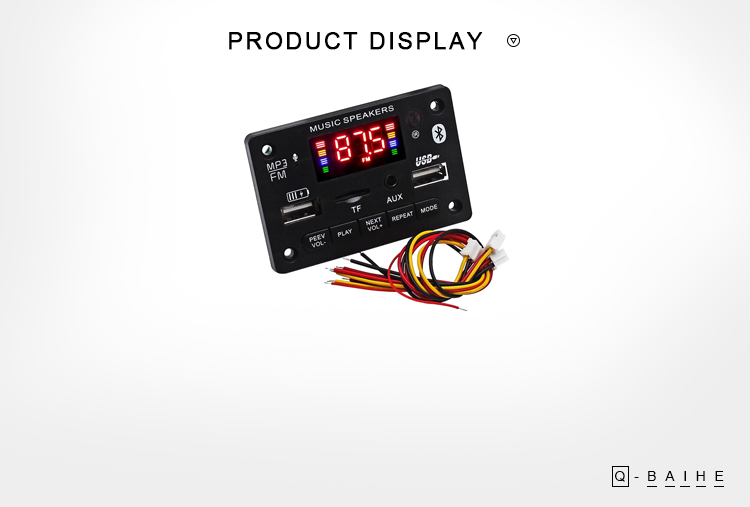

Title：	Lossless Bluetooth MP3 Audio Decoder Board Color Screen with Recording and Calling DIY Car Home Audio Amplifier Modification
Specifications:	Product parameters without amplifier: 1. Bluetooth version 5.0 2. Support calling (press and hold the pause button to answer the call when there is an incoming call) 3. Supports recording. Recording only supports TF mode or USB mode operation (long press the MODE button to start recording, long press the MODE button again to cancel recording and play the recording file); Exit recording mode by long pressing the pause button. When recording, a storage device such as a USB flash drive or TF card needs to be connected; ) 4. Support power-off memory The power supply voltage supports between DC5V-12V, and the operating current is between 1-3A. Single USB discharge can support a maximum current of 2A, and the magnitude of the current is determined by the input voltage and data cable to determine the final output value. 6. Supports song formats MP3/WAV/APE/FLAC 7. Main functions: MP3/USB/TF/LINEIN/FM/BLUETOTH/remote control. 8. Supports folder selection and playback. When playing USB or TF, if there is a folder in the device and there are songs in the folder, pressing the up or down button twice in a row can select the folder to play the song Product parameters with amplifier: 1. 7V-23V power supply 2. Peak power 2 * 40W stereo 3. Left USB discharge supports a maximum current of 1 4. Support folder selection for playback 5. Supports calling/recording (external recording). Recording needs to be operated in TF mode or USB mode. Press and hold the MODE button to start recording, press and hold the MODE button again to cancel recording and play the recording file; In recording mode, a storage device such as a USB flash drive or TF card needs to be connected; ) 6. Supports automatic switching between USB/TF/Bluetooth/radio/AUX 7. Support power-off memory function: remember songs and volume before power-off 8. The product comes with an amplifier that supports balanced output, with a stereo power of 2 * 40W. 9. Supports song decoding for MP3/WMA/WAV/APE/FLAC versions 10. Signal to noise ratio ≥ 70dB 11. Radio frequency range: 87.5-108MHz
Packing:	1* Non destructive Bluetooth MP3 audio decoder board
