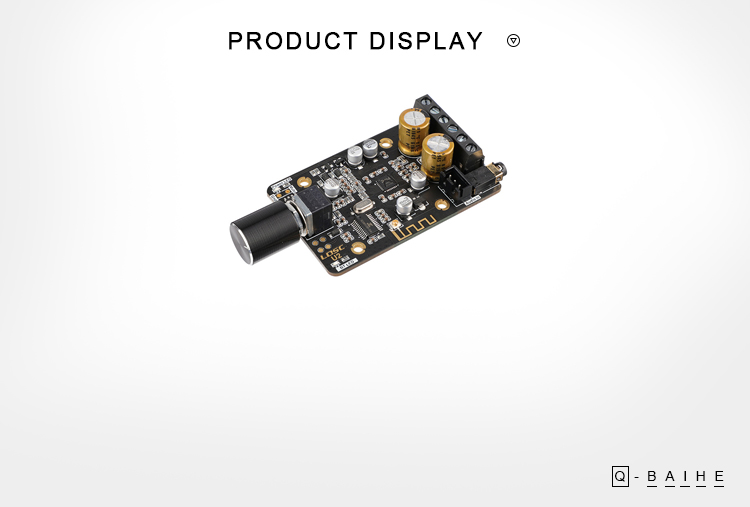

Bluetooth 5.0 Digital Amplifier Board PAM8620 Audio DIY Speaker 15W * 2 Dual Channel Stereo Amplifier Module

Be the first to review this product

was $35.37 Special Price $27.80

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.

Availability:

In stock

SKU

LQ-PAM8620

Details

Title：	Bluetooth 5.0 Digital Amplifier Board PAM8620 Audio DIY Speaker 15W * 2 Dual Channel Stereo Amplifier Module

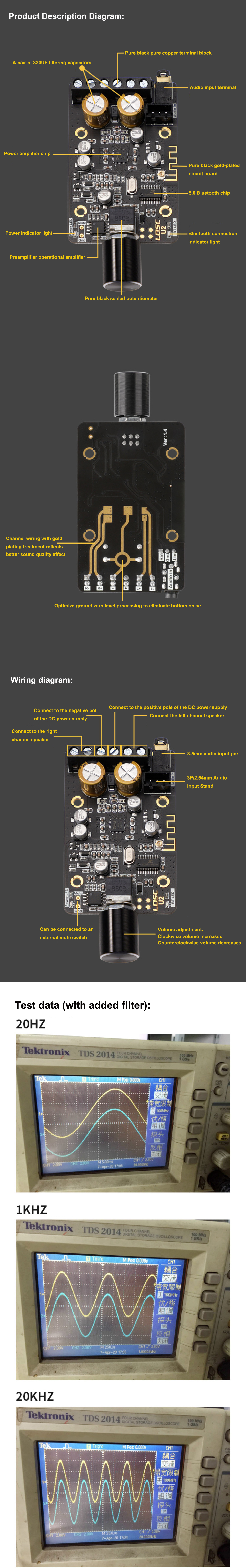

Specifications:	Product Category: D-Class 2.0 Channel Bluetooth Amplifier Operating Voltage: DC8-24V Output power: rated power 2x15W stereo (24V/8 ohms) Can connect 6/8/16 Euro speakers Input method: 5.0 Bluetooth audio, 3.5mm audio input: 3P 2.54mm wiring terminal audio input Performance indicator: Efficiency:> 90% Total harmonic distortion plus noise:< 0.2% Gain: 32db Low static current/noise suppression Bluetooth indicator light status: 1. Flash is in a disconnected state 2. Constant brightness indicates a successful connection status 3. Slow flashing is the state of playing music Audio source switching method: By default, when AUDIO IN (or 3P terminal) is connected to Bluetooth, it automatically switches to Bluetooth audio source. Protection function: Power input reverse protection/short circuit protection/overcurrent protection/overheat protection/undervoltage/overvoltage protection Additional features: MUTE/GND interface (short circuit this interface can achieve mute) Size: PCB: 67mm * 42mm (length * width) Overall: 67 * 42mm * 15mm (length * width * height) Potentiometer handle opening: 7mm Installation hole spacing: 32mm * 32mm Installation hole size: M3
Packing:	1* Bluetooth 5.0 Digital Amplifier Board
