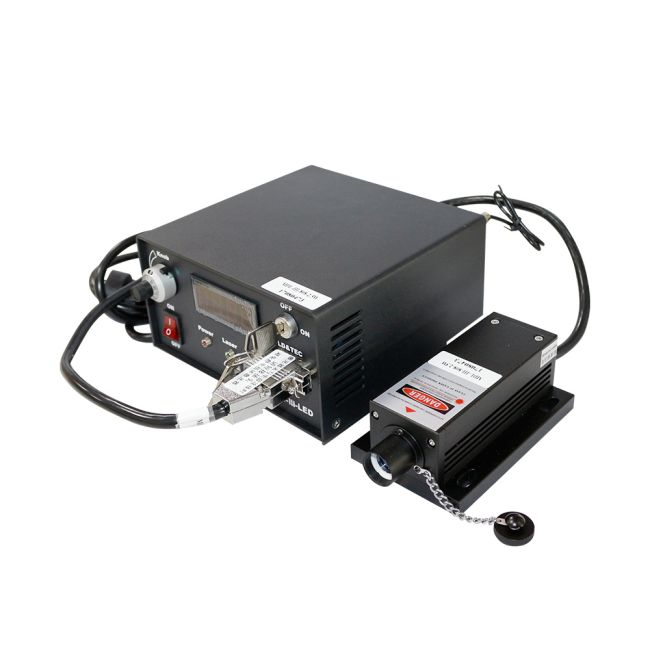

MDL-XF-980nm 10W Infrared Semiconductor Laser Module ( PSU-H-LED Power Supply,0.5% Power stability )
Specifications:
Central wavelength (nm) ：980±10
Operating mode：CW
Output power (mW) ：>8000, 9000, … , 12000
Power stability (rms, over 4 hours) ：<1%,<2%, <3% (<0.5%, optional)
Transverse mode：Multimode
Dimensions of beam at the aperture (mm)：-5x8
Beam divergence, full angle (mrad)：<3.0
Warm-up time (minutes) ：<5
Beam height from base plate (mm)：37
Operating temperature(℃)：10-35
Power supply：100-240VAC PSU-H-LED
TTL / Analog modulation：TTL or Analog with 1Hz-1KHz 1KHz-10KHz,10KHz-30KHz optional
Expected lifetime (hours)：10000
The unit price is ONLY USD3245
Buy More, Save More!
