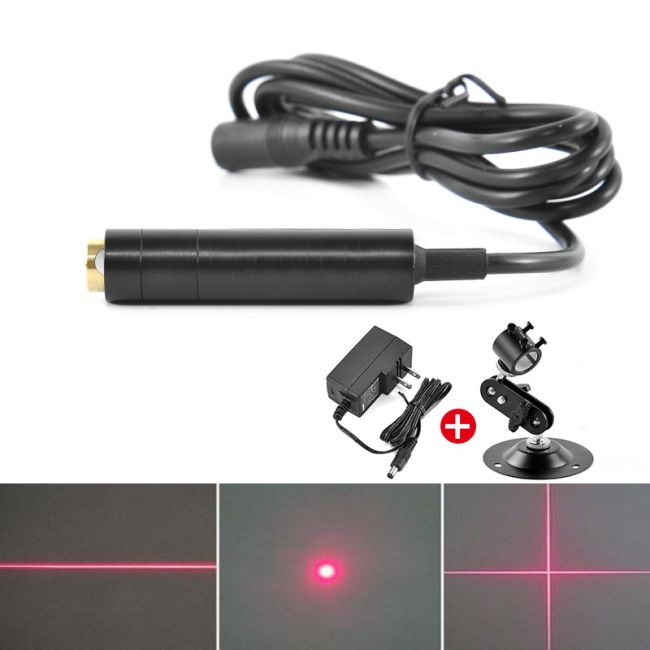

650nm 50mW Dot Line Cross Laser Module Focusing And Positioning Marking Instrument

Be the first to review this product

was $13.20 Special Price $12.80

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.

Availability:

In stock

SKU

650MDLC-50-1255-AC

Type

Qty:

Details

Specification:
Wavelength: 650nm
Output power: 5-80mW
Working current: 20mA-140mA
Supply voltage: 5V
Core components: Mitsubishi
Spot mode: One word line
Working temperature: ±50℃
Output band: visible light
Optical part: focusing lens + flat lens
Product material: Lens: plastic focusing lens + K9 glass lens; shell: #7075 aluminum alloy; Best working distance: 0-4 meters
Service life: 8000 hours
Weight: laser 0.045kg / bracket 0.13kg / power supply 0.13kg
Structural features: aluminum alloy shell + imported laser diode + K9 glass lens + constant current drive board

Use distance:
5mW line cross line: indoor use within 0.2-1m meters, can be used for a long time;
10mW one-line cross line: indoor use within 0.2-2m meters, can be used for a long time;
20mW line cross line: indoor use within 0.2-2.5 meters, can be used for a long time;
50mW one-line cross line: indoor use within 3 meters, can be used for a long time;
80mW one-line cross line: indoor use within 4 meters, can be used for a long time;

Package:
1* Laser Module
1*5V Power Supply
1* Universal Bracket
