650nm 120mW Adjustable Red Line Laser Infrared Diode Laser Positioning Module

Be the first to review this product

was $38.70 Special Price $32.00

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.

Availability:

In stock

SKU

650ML-120-2280-AC+US+H

Type

Qty:

Details

Title：	650nm 120mW Adjustable Red Line Laser Infrared Diode Laser Positioning Module DIY
Wavelength:	650nm	Output Power:	≤120mW
Operating Voltage:	DC 2.8-5.2V	Operating Current:	≤150mA
Operating Temperature:	-10°~+40°	Storage Temperature:	+10°~+40°
Mean time to failure:	>10000H	Divergence angle:	0.5-0.8mrad
Output band:	visible laser	Operation mode:	continuous laser
Structural features:	laser tube + lens + heat dissipation shell	Size:	22x80mm
Driver circuit:	ACC	Working medium:	semiconductor laser
Working distance:	The indoor working environment can reach 10 meters The working environment can reach 5 meters in semi-outdoor (not direct sunlight) Installation height 0 meters-5 meters can be used

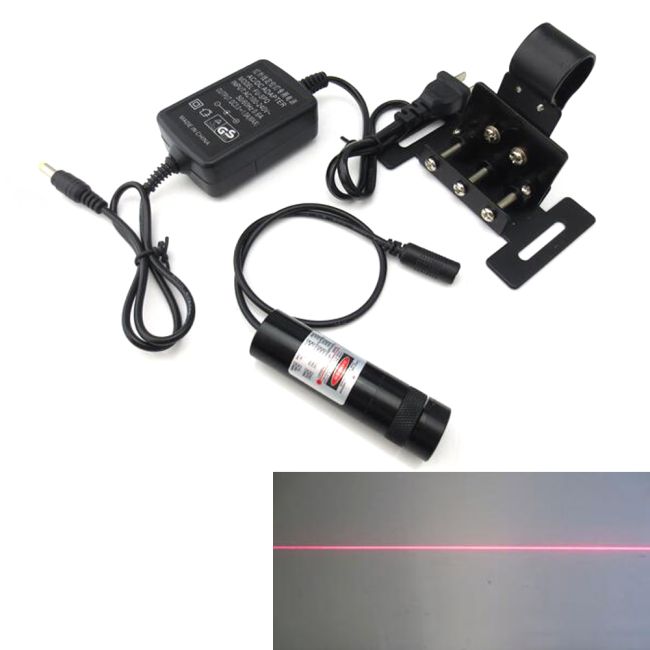

Package:	1* Laser Module 1Bracket 1Adapter
