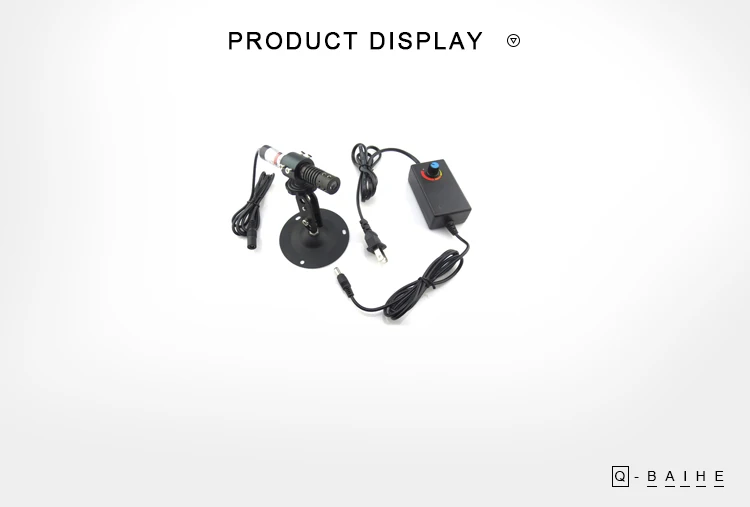

Title： | 650nm 100mW Red Large Circle Laser Module 16X90mm Infrared Positioning Lamp w/Adapter US/EU/AU/UK DIY | |||
Wavelength: | 650nm | Power: | ≤100mW | |
Supply voltage: | DC 2.8-5.2V | Working current: | ≤200mA | |
Dimensions: | φ16mm*90m | Spot mode: | big circle (other effects can be customized) | |
Output band: | visible light | Product material: | aviation aluminum | |
Structural features: | imported laser diode + metal shell + high-quality lens + constant power circuit board | Working temperature: | -10℃-50℃ | |
Working life: | 10000 hours | Storage temperature: | -40～85℃ | |
Laser class: | Class ⅢB (5-500mW) | |||
Features: | 650nm100mw red light big circle laser, using imported big circle glass lens and laser diode, the diameter of the big circle is 1:1 ratio to the irradiation distance Such as: Installation height is 1 meter, the diameter of the circle is 1 meter The installation height is 5 meters, the diameter of the circle is 5 meters The drawn circle is a perfect circle, the red line is thin and uniform, and the stability is very high The installation height can be used from 0 meters to 10 meters (external adjustment structure, adjustable line width, simple and convenient to use) | |||
Package: | 1*Laser module | |||
| Price | $148.60 |
|---|---|
| Power | 100mw |
| Price View | As Low as |
