| Title： |

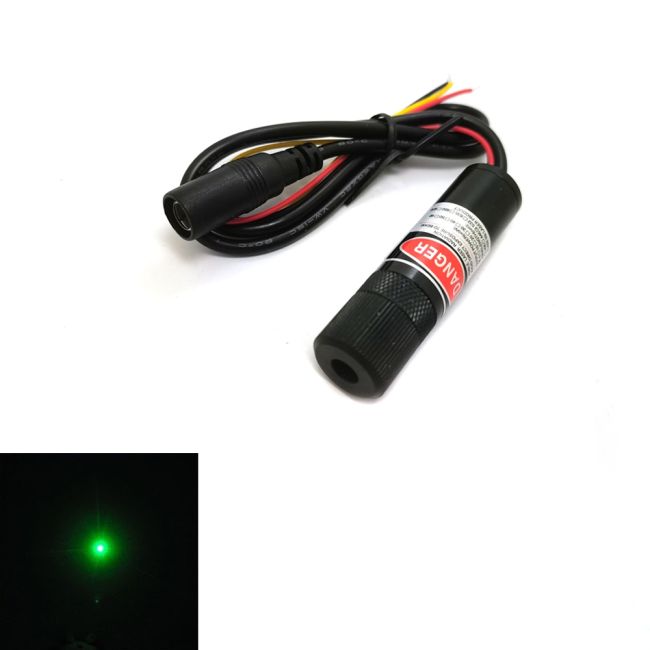

520nm 1mW 5mW 10mW 20mW Green Dot Laser Diode Module TTL Signal Modulation |
||
| Wavelength: | 520nm | Exit pupil power: | 1mW-20mW (please select power) |
| Threshold current: | 100mA | Working current: | <270mA |
| Divergence angle: |
1.0mrad |
Optical system: | optically coated glass lens |
| Beam mode: | TEM00, continuous output | Spot description: | The smaller exit pupil at 0.5 meters is about Φ0.5mm in diameter |
| Modulation: | TTL | Modulation frequency: | 5-10mW is higher than 300KHz |
| Working voltage: | DC 3V-5V | Working temperature: | 10 ℃ ―35 ℃ |
| Storage temperature: | -10 ° C-80 ° C | Dimensions: | Φ16mm × 60mm |
| Working time: | Under normal conditions, it can be continuously lit for 1-2 hours. | ||
| Stability: |
<± 10% (after preheating, the temperature is between 10 ℃ -30 ℃) |
||
| Package: |
1* 520nm Green Dot Laser Diode Module |
||
