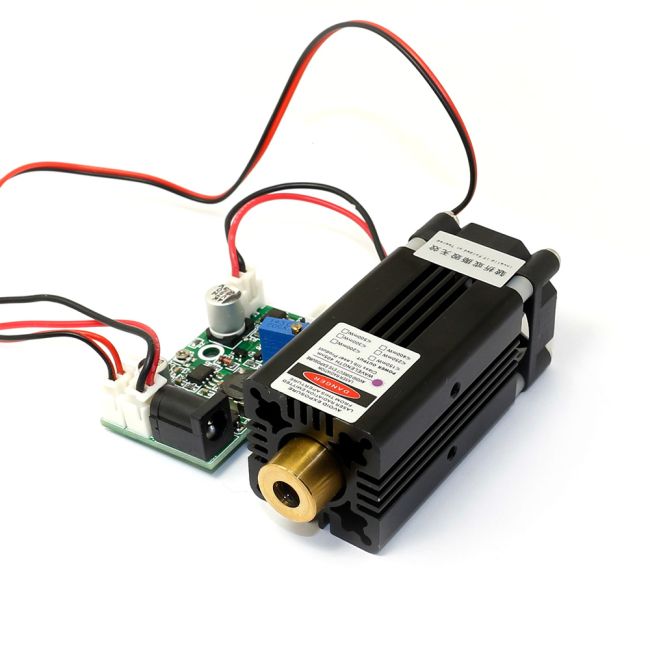

450nm 200mW Blue Laser TTL Modulation Air Cooling Can Work Continuously

Be the first to review this product

was $86.70 Special Price $78.00

Host size: length 69.5mm * width 30mm * height 30mm
Output wavelength: 405 nm
Output power: 200mW
Working voltage: DC=12V
Cooling method: air-cooled
Modulation frequency: TTL 1-20K Hz
Modulation voltage: 0-5V
Job characteristics: Can work continuously
Surface treatment: Green/Black（Random）

Availability:

In stock

SKU

450MD-200-12V-XL

Buy 5 for $70.00 each and save 10%
Buy 10 for $62.00 each and save 21%

Details

Specifications: Host size: length 69.5mm * width 30mm * height 30mm
Output wavelength: 405 nm
Output power: 200mW
Cooling method: air-cooled
Modulation frequency: TTL 1-20K Hz
Modulation voltage: 0-5V
Job characteristics: Can work continuously
Surface treatment: Green/Black（Random）
Shell material: Aluminum
Circuit control: constant current
Reverse protection: with automatic identification of positive and negative poles
Working voltage: DC=12V
Working current: I<260mA
Preheating time: none
Working temperature: -10 ℃ to+40 ℃
Storage temperature: -10 ℃ to+40 ℃
Structural features: laser tube+lens+heat dissipation shell
Note: The power supply and laser head are separate, and the laser head is equipped with a fan for cooling
Special Reminder: The input voltage is 12V. Overvoltage can cause instantaneous damage to the circuit and module

Package:
1 x 450nm 200mW Blue Laser Module TTL Modulation Air Cooling Can Work Continuously
