| Title： |

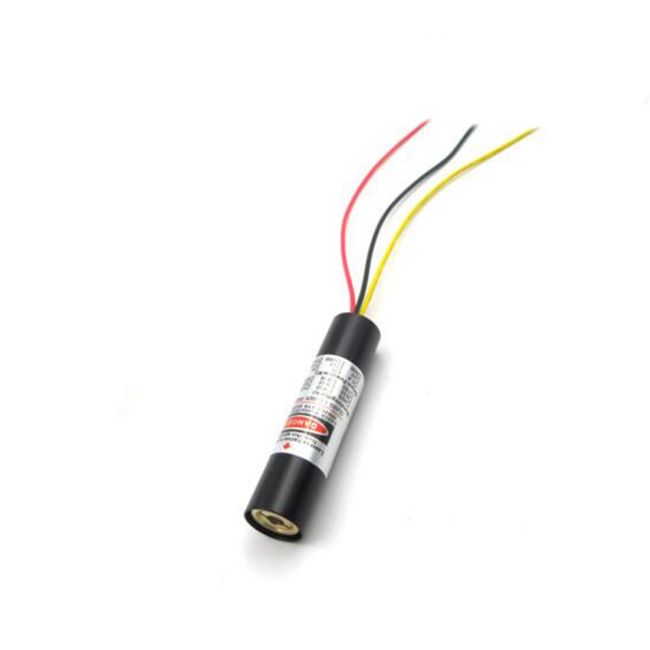

405nm 450nm 5mW 10mW 20mW 100mW 150mW 200mW TTL Modulated Dot Laser Module Laser |
||
| Dimensions: |
φ12 * 50mm |
Output Wavelength: |
405nm ± 5nm |
| Output Power: |
5mW 10mW 20mW 100mW 150mW 200mW |
Working Voltage: |
DC 2.8-5.2 (V) Can Be Customized |
| Specifications: |
Power: 5mW
Working current: ≤ 35mA Light distance: can play 0-100 meters indoors during the day Can play 0-20 meters outdoors during the daytime Can play 0-200 meters in the dark environment Power: 10-20mW
Working current: ≤ 70mA Light distance: can play 0-150 meters indoors during the day 0-50 meters outside during the daytime Can play 0-300 meters in the dark environmen Power: 100mW
Working current: ≤ 150mA Light distance: can play 0-180 meters indoors during the day 0-60 meters outside during the daytime Can play 0-350 meters in the dark environment Power: 150mW
Working current: ≤ 200mA Light distance: In the daytime, you can play 0-200 meters indoors. 0-70 meters outside during the daytime Can play 0-400 meters in the dark environment Power: 200mW
Working current: ≤ 300mA Light distance: can play 0-250 meters indoors during the daytime 0-80 meters outside during the daytime Can play 0-500 meters in the dark environment |
||
| Advantage: | 1. Modulation frequency range 0—50KHZ (can be customized) 2. The spot size can be adjusted from 1mm to several centimeters to meet your different usage requirements. 3. The outer casing is aerospace aluminum-plated insulating varnish, which can fully dissipate heat and shockproof and anti-static 4. Laser diode direct illumination, high stability, can be turned on 24 hours a day 5.IC's intelligent driver board can be 2.8-5.2V ultra-wide range power supply (other voltage can be customized) 6. High temperature resistant Corrosion resistant DC plug wire Suitable for all-weather use 7. Wavelength Power Wire length Working distance Spot effect, etc. can be customized according to customer requirements |
||
| Package: |
1*405nm Laser Module |
||
| Price | $35.37 |
|---|---|
| Price View | As Low as |
