| Title： |
12V 658nm Red Light Module Driver Circuit Step Down Constant Current 6-14V Input |
|
Circuit control: |
step-down circuit, constant current output, to ensure stable light output after 5.8-12V power supply |
|
Dimensions: |
10.3*22mm*1.6mm (width * length * height) |
|
Output current: |
default 280mA (can output 2A, 1R0 resistance needs to be reduced) |
|
Reverse connection protection: |
The input terminal is protected, and the reverse connection is not energized |
|
Pin definition: |
The pad is specially designed for 658nm driver board, you only need to arrange the pins according to the triangle and solder them naturally |
|
Polarity definition: |

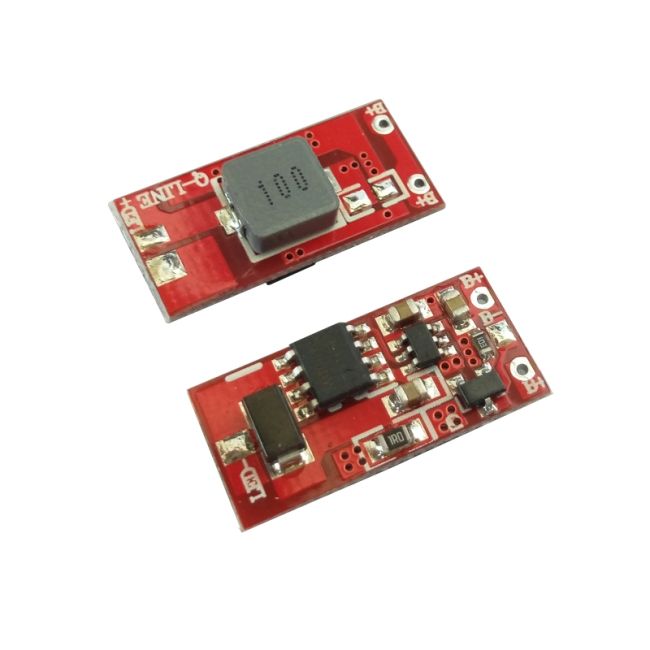

please refer to the main picture for welding instructions |
| Package: |
1*Red laser module driver circuit board |
| Price | $13.50 |
|---|---|
