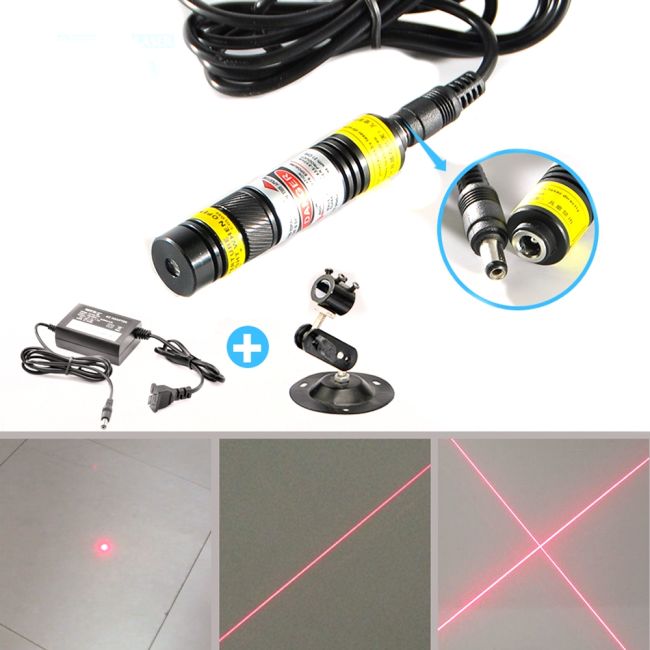

100mw 650nm Dot Line Cross Infrared Laser Module Diode Positioning Light Marking Machine

Be the first to review this product

was $24.00 Special Price $20.40

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.

Availability:

In stock

SKU

650ML-100-1668-DC

Type

Qty:

Details

Title：	New 648-660nm 100mW Red Light Dot Line Cross Wireless Laser Marking Instrument
Wavelength:	648nm-660nm	Output Power:	10mW, 50mW, 100mW, 150mW, 200mW Optional
Operating Voltage:	5V	Operating Current:	40-280mA
Operating Temperature:	-20°~+50°	Storage Temperature:	-40°~+85°
Mean time to failure:	>8000H	Working temperature:	±50 degrees
Spot mode:	Dot / Line / Cross	Material:	Aviation Aluminum
Optical part:	Focus + K9 glass wave mirror + cross mirror	Size:	16mm* 68mm (with lock and adjustable focus)
The best working distance:	Dot 0-100 meters / Cross Lline 0-10 meters: 10mW: Indoor 2 meters (can be used for 8 hours) 50mW: Indoor 3 meters (can be used for 8 hours) 80mW: Indoor 4 meters (can be used for 8 hours) 100mW: Indoor 5 meters (can be used for 8 hours) 150mW: 8 meters indoor (can be used for 8 hours) 200mW: Indoor 10 meters (cannot be used for a long time, 20 minutes each time)
Package:	1* Laser Module
