Specification:

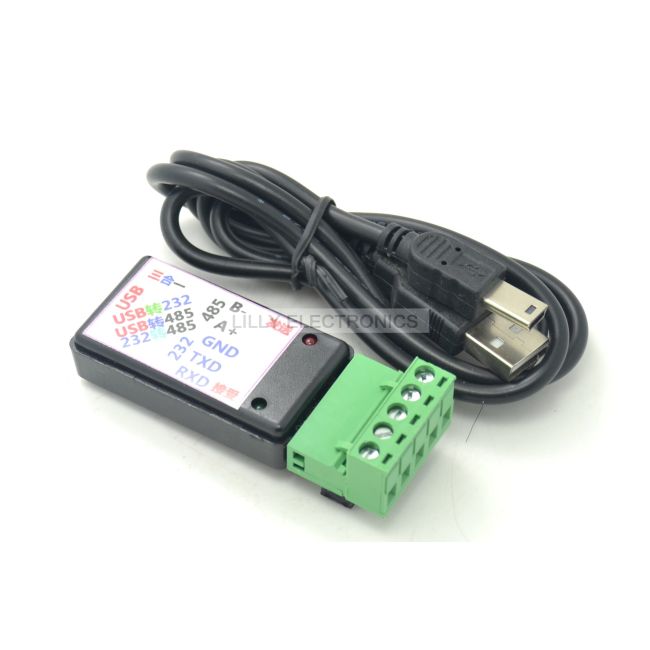

1.Model: USB-232-485
2.Driver support WIN7, XP, Linux, etc., specifically for access control, PTZ, PLC, industrial instrumentation and communications design
3.Serial port (232) to 485 is more stable than an ordinary serial port, directly through the usb interface, power supply, providing maximum 500mA of current. 485 232 data can be sent through the USB interface monitoring, data can be sent through the USB interface 485 monitoring 232
4.Instructions for use:
USB to Serial (232): DIP switch 1,2 ON, 3,4,5,6 OFF
USB to 485: DIP switch 3,4 ON, 1,2,5,6 OFF
serial ports (232) 485: DIP switch 5,6 ON, 1,2,3,4 OFF
USB, serial (232) while 485: DIP switch 3,4,5,6 ON, 1,2 OFF
USB, 485 while to serial (232): DIP switch 1,2,5,6 ON, 3,4 OFF
Feature:
1.Conversion multiple functions into one (USB to 485/USB to 232/232 to 485)
2.USB to serial (232)
3.USB to 485 (with bidirectional TVS surge protection)
4.Serial (232) to 485
5.USB, serial (232) to 485 at the same time
6.USB, 485 to serial (232) at the same time
Package:
1X USB to 485 USB to 232 232 to 485 With Light Triple Converter*1
