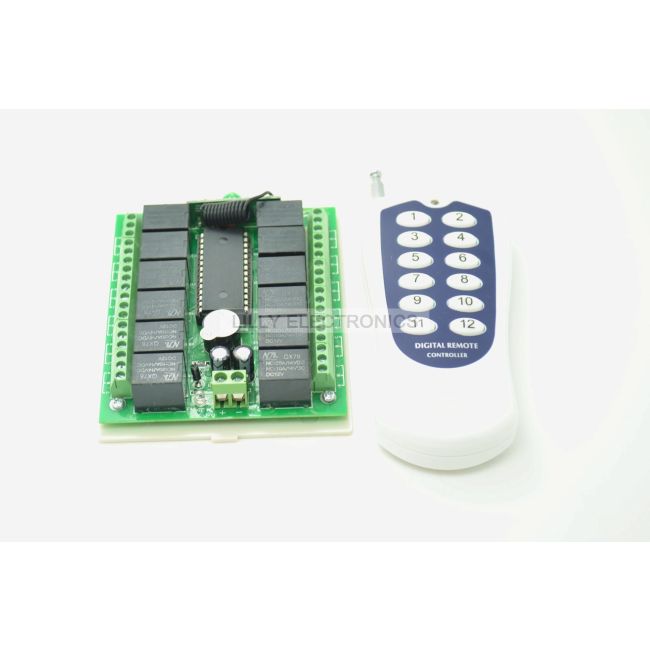

Product Description
The item has two working frequency:315MHz or 433MHz,please tell us the frequency you require via message. Or we will mail one to you at random.
1.Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC 110~240V or DC 0~28V.
2.You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls, floors, and doors.
3.Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.
4.One/several transmitters can control one/several receivers.
5.If you use two or more receivers in same place, you can set them with different codes.
6.Transmitting Frequency: 315MHz/433MHz.(here is in set , we have make it work together ,so you don't have to care about what frequency are they )
Specification of receiver:
7.Channel: DC12V 12 CH channel
8.Output/working way : jog , inter-lock . self -lock (can be change on yourself )
<1>Jog-----press one button is "ON" . loosen your finger on the same button is"OFF".need one channel switch and one buttons remote control )
<2>Self -lock------ press one button for one time is "ON" .press the same button again is "OFF" .(need one channel switch and one buttons remote control
<3>Inter-lock ------- press one button is"ON",press another button is "OFF" . (need one channelswitch and 2 buttons remote control
<4>Please note that : it is the control system in set here .you just can choose jog or self-lock working/output way here .for there are 12CH and 12buttons .
9.Decode: Learning code (it can learn serveral remote control and the working way can sbe changed )
Feature
1.Working Volt: DC12V
2.Working Current: 30mA
3.Frequency: 266~433MHz
4.Encoding Type: Fixed, learning, rolling
5.Firing Range: 1000 meter
6.Size: 85 x 37 x 18mm / 3.34 x 1.45 x 0.70in(L x W x H)
7.Encoding a key for the short-circuit block 2-8 keys for the pad
8.Shock resistance : 3.3M-4.7M
Control Switch System:
1.Operating Voltage: DC12V
2.Operating Frequency: 315MHz 433MHz
3.Receiver Sensitivity: -90dBm
4.Maximum Load: 5A
5.Encoding Type: Learning code
6.Size: 95 x 55 x 17mm / 3.7 x 2.16 x 0.66in(L x W x H)
7.Working way : jog .inter-lock ,self-lock (can be changed randomly)
8.Learning method :
Press the learning button on the receiver board .when you hear the sound :"BI"
it means enter into the learning state , and then press the relative button of the remote control .when you hear the 3 sound "BIBIBI" ,it means learn successfully ,
A: Signal non-lock(jog): press the NO.1 button of the remote control to learn
B: Signal self-lock:(self-lock): press the No.3 button to learn ,each channel is independent of the others ,
C: Signal inter-lock: press the NO.2 button to learn
D: 1CH-4CH is jog, 5CH-8CH is self-lock press the NO.4button to learn
E: 1CH-4CH is jog, 5CH-8CH is inter-lock press the NO.5button to learn
F: 1CH-4CH is inter-lock, 5CH-8CH is self-lock press the NO.6 button to learn
9.Clearing method:
Press the learning button for about 10 seconds ,and when you hear "BI" again. it means clear successfully
