Details
Specification:
Using original TP2050 TC2000
Electrolytic capacitor using 220UF / 50V electrolytic ensure strong support for a steady stream of power.
Resistance select 0805,0603 high precision chip resistors, ensure the machine a good signal to noise ratio.
1.6mm thick sheet using double-sided PCB, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. PCB-class quality.
Power and sound are beyond TA2024 TA2020
Very small size, big power.
No noise, circuit design is very reasonable, there is no low-noise!
Feature
Work: Class D
Quiescent Current: 20mA
Efficiency: 90%
Rated output power: 2 * 50W
Frequency response: 20Hz to 20KHz
Operating voltage: DC18V to DC24V
Recommended supply voltage: DC24V
Maximum output current: 3A
PCB size: 93 * 57MM
Package:

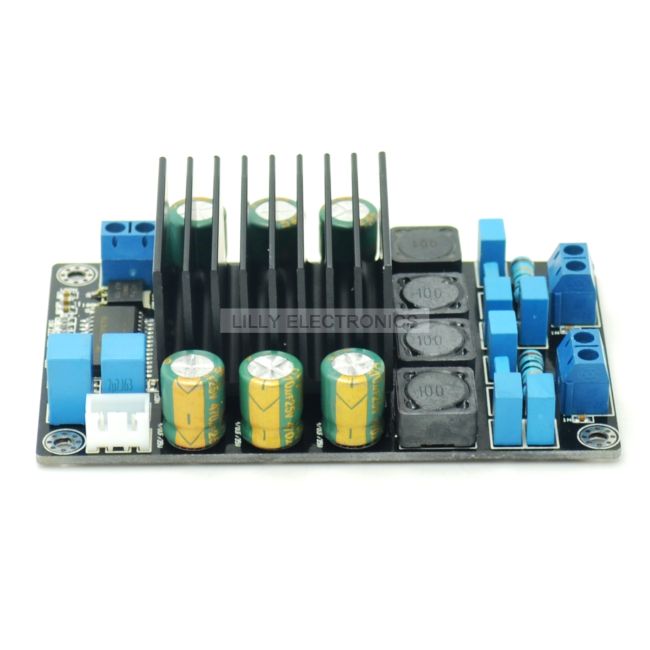

1PC TP2050 Digital Amplifier Board (50W + 50W)
