Specification:
1)The governor all the humane terminal, user-friendly and flexible wiring.
2) The governor input with reverse polarity protection, the general governor reversed burned, enter the correct negative line can easily access, then the correct power, access and no electricity.
3) The governor added a Hall handles governor, user-friendly not only can be used to adjust the industrial permanent magnet brush motors, can also be used for cargo tricycles controller, is the so-called use of a machine.
Feature:
1) Working voltage: DC12V-DC36V
2) Rated current: 20A, overload and short circuit protection current 25A.
3) Control power: 12V-300W, 24V-500W, 36V-750W.
4) Size: 130mm * 65mm * 35mm
5) PWM range: 0% -100%
Package:

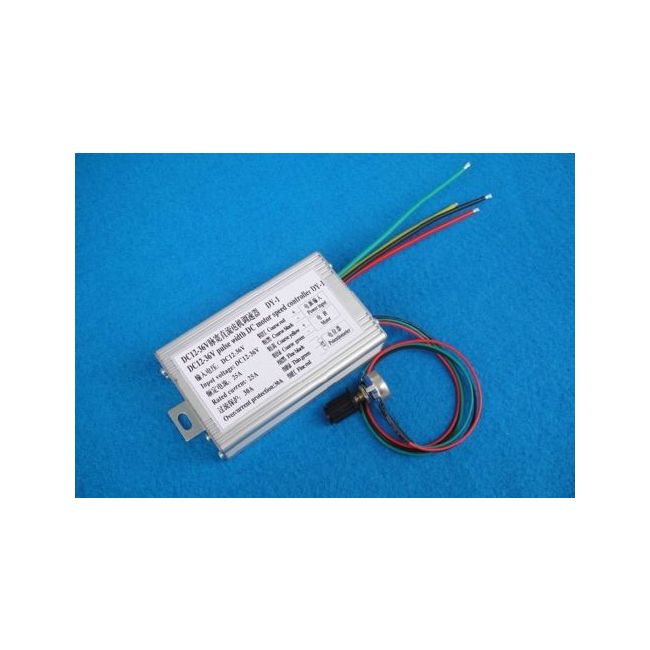

1 x 12V-36V 20A DC Motor Speed Controller
