Specification:
1. NRF24L01P + PA + LNA wireless module operates in Free license 2.4G ISM band, you can do point to point application and can also be composed of star network;
2.The Data transmission chip NRF24L01+, and match with the department's professional design, Add the the chip of power PA and LNA, RF switch, band pass filter composed of a professional full two-way RF power amplifier, making the effective communication distance has been greatly expanded;
3.customers can add an MCU through the SPI port to control NRF24L01P + PA + LNA, Wireless module to complete long distance wireless data transmission system desige.we will Offer reference MCU code of 51,AVR;
4.2.54mm pitch pins is compatible to the interfaces of module without amplifier;
5.The open area distance is about 1100m with Rate of 250K.
Feature
Frequrence:2.4GHz global open ISM band; Modulate style:GFSK;
Transmission rate:up to 2Mbps;
Communications:125 channels,the multi-point communications and frequency-hopping communications;
Error detection:the built-in hardware CRC error detection;
Voltage:3.0-3.6V,VDD = 3.3V;
Transmit power:20dBm;
Antenna: external 2.4GHz,18mm * 30mm;
distance: 1000m
Size:see picture.
Package:

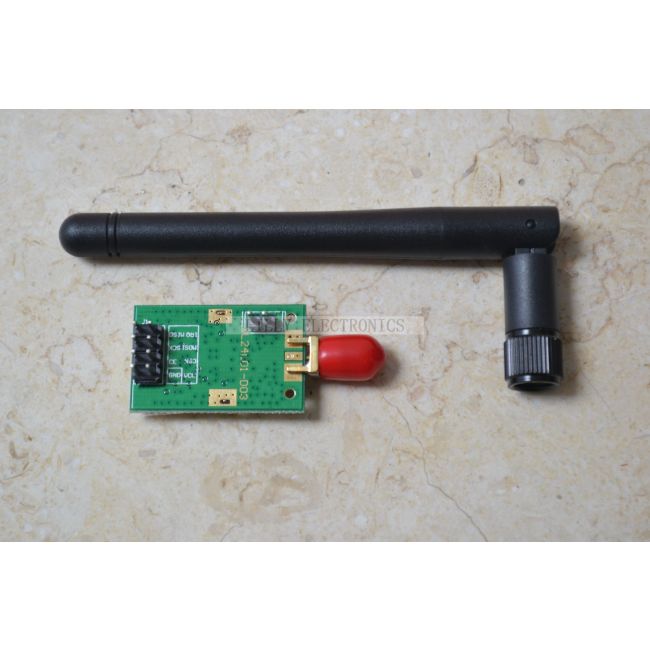

1 x NRF24L01+PA+LNA wireless module with 1 antenna
