Specification:
Output Power 100mw
Wavelength 650nm 658nm
Working Voltage 5.0VDC
Working Current <250mA
Laser Shape Cross
Fan Angle: 90° (default fan angle, please leave notes to us for other fan angle)
Dimensions ?12mmX45mm
Feature

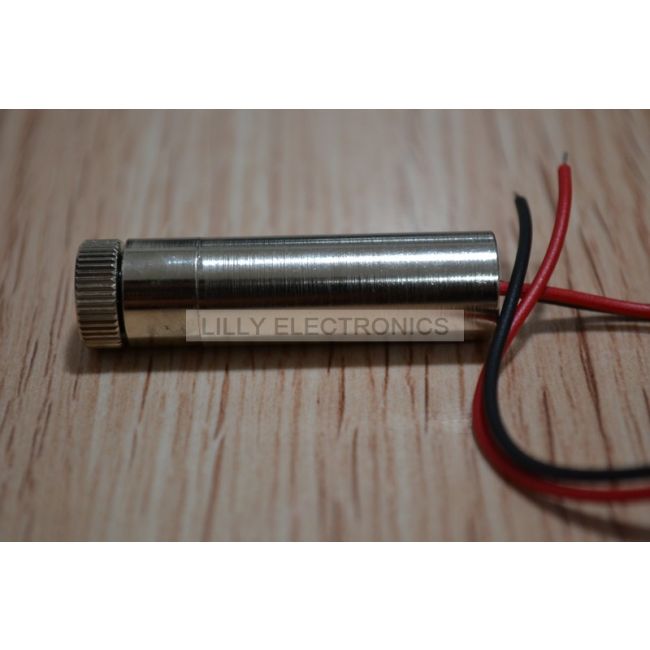

This module is 658nm 150mw laser cross module Angle 90°, we also have cross laser module with other fan angle . Please leave notes for other options. If the item is paid without leaving notes, we will send 90° laser module.
This is very high power module, please add heatsink or cooling device when working on this laser module! The proper heatsink:
(1)http://www.lillyelectronicsllc.com/cooling-heatsink-heat-sink-for-12mm-laser-diode-module.htmhttp://www.lillyelectronicsllc.com/cooling-heatsink-heat-sink-for-12mm-laser-diode-module.htm
(2) http://www.lillyelectronicsllc.com/heat-sink-holdermount-for-12mm-laser-modules.htm
Package:
1 x 150mw 658nm Red Laser Cross Module 90° (please leave notes to us if you need other fan angle)
