Specification:
Recommend input voltage DC: +-35 --- +-50 V
Power: RMS 150 W 8 R THD < 0.05%
RMS 300 W 4 R THD < 0.06%
PCB size:147*60 MM
Amplifier board comes with DC output cut protection. Short-circuit output protection.
Overload protection.
Comes thicker increasing the height of the radiator for sufficient power. You can reach 300W 4R rated output power.

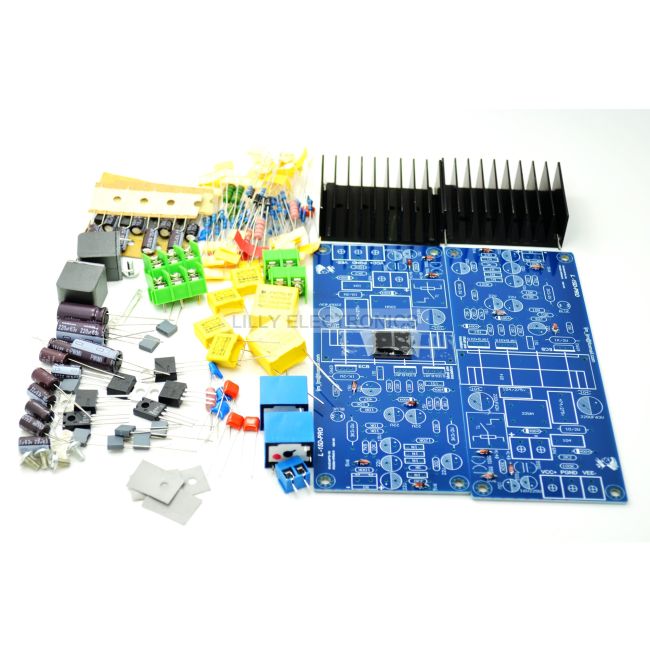

This is a set of two pcs of IRS2092 IRFB4019 class D Power amplifier board with speaker protection just like the picture show.
one board is mono, two boards is two-channel
it is two pcs kits for complete boards, you need to solder it by yourself.
Package:
1 x Power amplifier kit (include 2 channel boards)
