Specification:
Type: LS_SPY8002
Image Sensor:OV CMOS Sensor
Image processor:Digital Image Processor DSP
Storage Medium:Micro SD (ie, TransFlash), 2G, 4G, 8G can be used, not included
Video format:
Resolution: 640X480, 30fps
MPEG
Picture format:Resolution: 640X480, JPEG
Audio format:Sampling: 16KHz; 65Kbps
USB interface:USB 2.0 mass storage device
Power:3.6V-4.2V, Li-Poly battery included
Size;Diameter 39mm

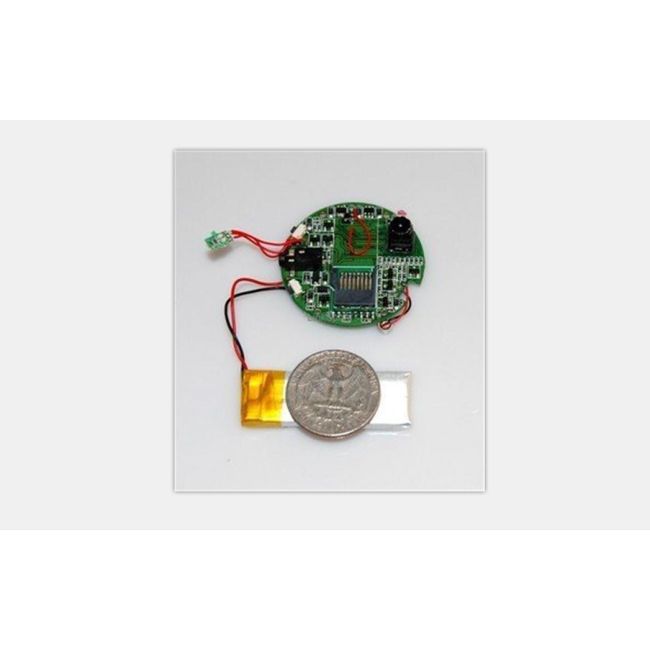

This LinkSprite Spy DVR / JPEG camera module is used to turn everything ordinay into a spy DVR.
You can also remove the button and use Arduino to control it!
Feature:
Recording Current (peak):160mA
Taking picute current (peak):220mA
Idle (peak):110mA
Voltage:3.7-4.2V
Diameter 39mm
Built-in 0.3 million pixel camera
High quality MPEG compression
VGA video and photo, 30 frame / second
SD cards (2G, 4G or 8G, NOT INCLUDED)
Can be used as USB drive
Autuomatically shut off
3 button simple operation
Package:
1 x DVR / JPEG reconnaissance camera module (Round)
