Specification:
Input Voltage: 4.75-5.25VDC
Working Current: 50-300mA
Constant current control, Can drive:
660nm 50-300MW
780nm 50-300MW
808nm 50-300mw
850nm 50-300mw
980nm 50-300mw
Feature

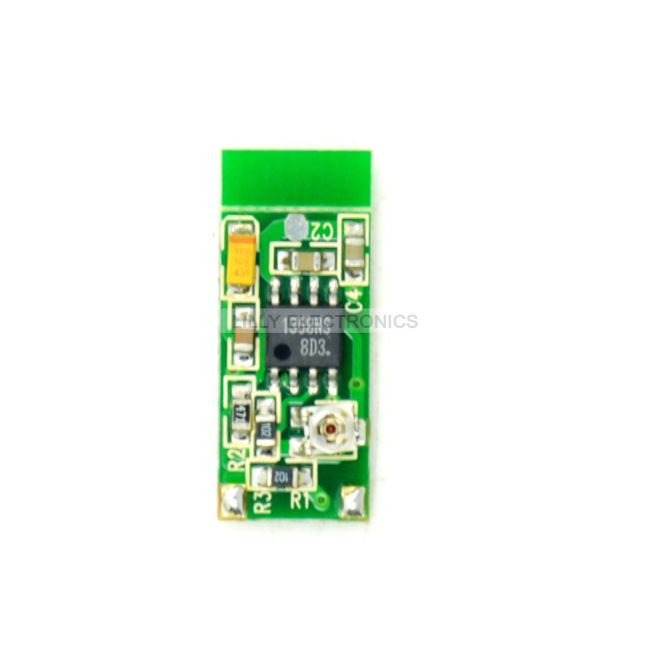

This is 808nm 980nm laser Constant Current Driver Board for use of Laser Pointer
Normally the current can only be within 50-300mA,if you need it bigger, you need to drop the two resistors of 100ohm & 10ohm properly
It comes with TTL modulation, high-open low pass!
Package:
1 x 808nm 980nm laser Module Constant Current Power Supplier Driver Board
