Specification:
Size: 60.8 * 47 * 14mm (overall size)
RS485 interface: D-/ B, D + / A, GND
Temperature range: -40 ~ 85
Serial rate: Adjustable (ZigBee module with serial rate 9600,19200,38400,57600,115200 optional)
Power Requirements: Voltage DC5 ~ 12V, current> 300mA
Expansion Interface: leads ZigBee Module Debug Interface (compatible with TI's standard tools, such as CC-Debug, CC2530EB, CC2430EB etc.); two LED; TEST button, RESET button.
Feature:
Function:
This floor is RS485 to UART, with the company ZigBee module (DRF1605 or DRF1605H) use can be DRF1605Or DRF1605HInterface into a standard RS485 interface.
Supply voltage: DC 5 ~ 12V
Weight: 20.5g.
Package:

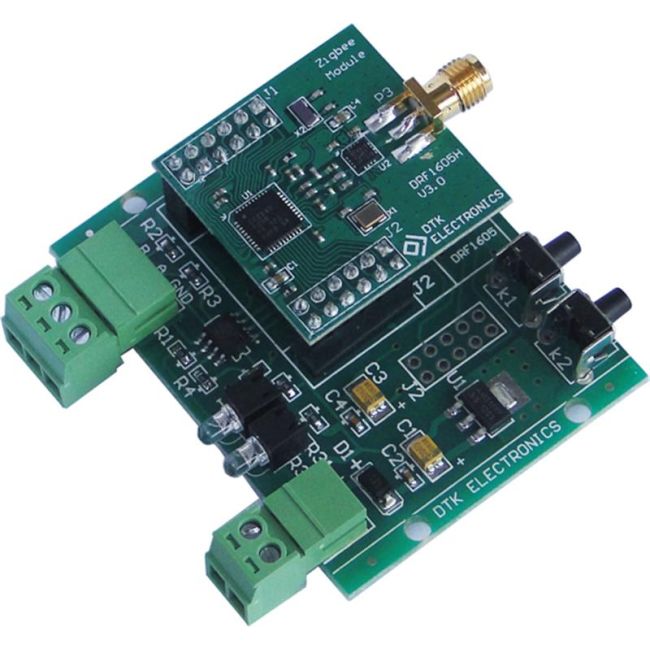

1 x CC2530 Zigbee Module-RS485 to TTL backplane baseboard DRF1605-RS485A Z
