Details
Specification:
Wavelength 980nm
Ouptut Power 30mW
Current <100mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V Off low, high open, normal status close
TTL frequency 0-15KHz
Dimension: 8mmx13mm

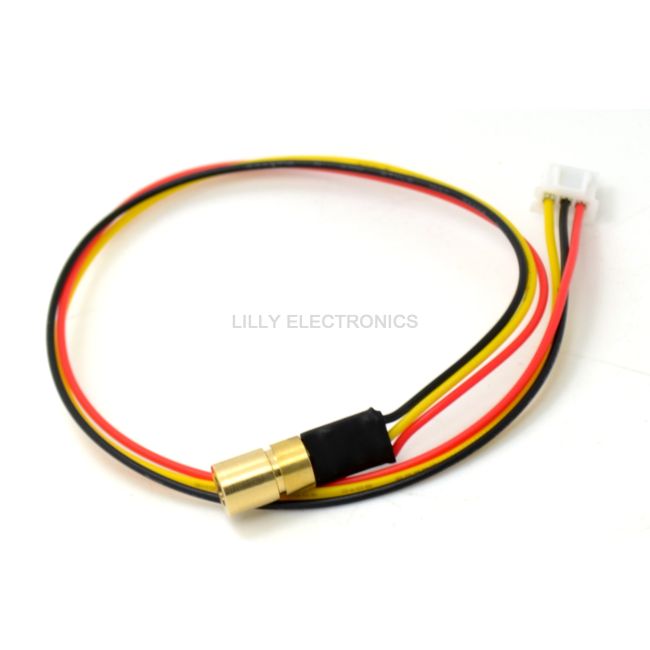

Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Feature:
This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.
The 980nm Laser is invisible, but can be seen by 980nm display board, it will be displayed as a green dot on the board. Please check from our store for the 980nm Display board.
Package:
1 x 980nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz 8x13mm
Wavelength 980nm
Ouptut Power 30mW
Current <100mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V Off low, high open, normal status close
TTL frequency 0-15KHz
Dimension: 8mmx13mm
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Feature:
This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.
The 980nm Laser is invisible, but can be seen by 980nm display board, it will be displayed as a green dot on the board. Please check from our store for the 980nm Display board.
Package:
1 x 980nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz 8x13mm
