Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.
Specification:
Output Power 800mw
Wavelength 445nm-450nm
Working Voltage 6.7-7.5v
Working Current <1000mA
Working Temperature －１０℃～＋４0℃
Laser Shape Dot
Focusable Yes
Material and Color all metal
Duty Cycle 45 seconds on, 15 seconds off
Dimensions φ12x 35mm (Not including circuit board)
Heatsink dimension: φ18x 18mm
Feature:
This 450nm 50mw blue laser module with built-in driver is an industrial electronic component and used for industrial testament, Lab etc.
This 445nm-450nm laser module with driver is an industrial electronic component and used for industrial testament, Lab etc. This is a high power laser module with driver for 6.7V-7.5v voltage.
Please be careful this laser module cannot work for a long time if there is no temperature control device. 45 seconds on, 15 seconds off. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package:

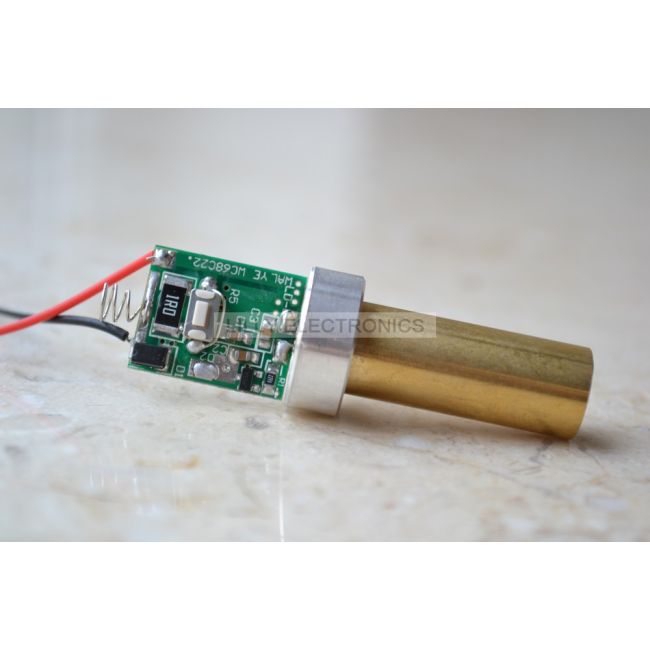

1 x 445nm 450nm 800mw 0.8w Blue Laser Dot Diode Module with Heatsink
