Specification:
Output Power 290-320mw
Wavelength 638nm(±5nm)
Working Voltage 12v
Working Current <500mA
Working Temperature －10℃～＋40℃
Laser Shape Dot
Focusable Yes
Material and Color all metal
Lens Glass
Beam Divergency <φ18mm at 10m
Startup Voltage 5.8V
Dimensions 20x57mm
Feature

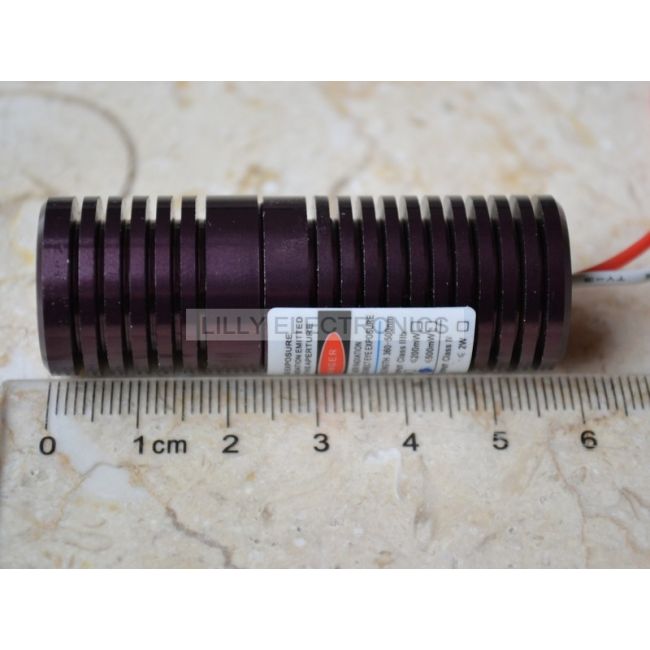

This 635nm 638nm orange red laser module with built-in driver is a high-power laser module which can work continuously within10 minutes without additional cooling device, its working volatage is 12v voltage.
The 638nm Laser has bigger laser beam divergence than normal 650nm 658nm laser, so the 638nm laser dot shape is more than different from 650nm 658nm laser, 638nm laser dot is not so much round, please refer to the pictures below for its real dot shape respectively at 4mm and 2mm.
Please be careful when you doing some test on it if there is no temperature control device. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package:
1 x New 635nm 638nm 300mw Orange Red Focusable Adjustable Laser Module
