Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.
Specification:
Wavelength 830nm
Ouptut Power 30mW
Current <100mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V
TTL frequency 0-100KHz
Dimension: 18mmx45mm
The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Off low, high open, normal status open
Three-wire input, the red wire is positive, black wire is negative, TTL signal yellow wire is positive
Feature:
This 830nm 30mw laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package:

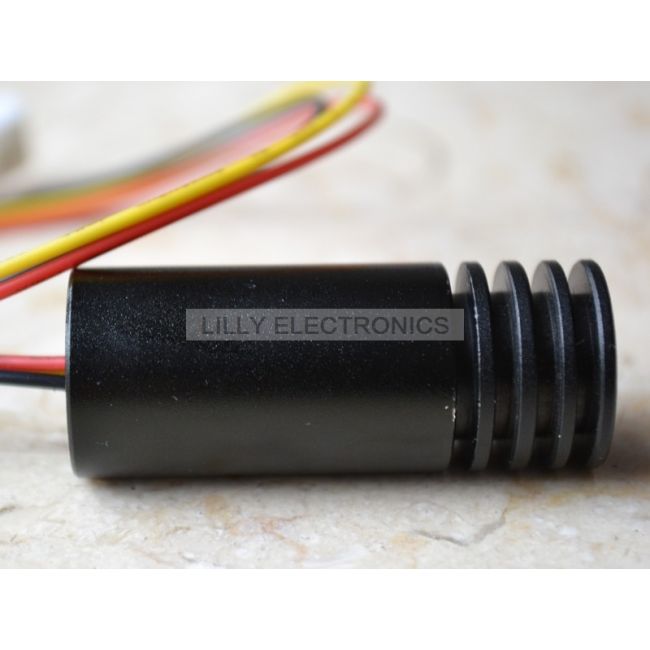

1 x 830nm 30mw Infrared IR Laser Dot Module w/TTL 100KHz
