Specification:
Wavelength 660nm
Ouptut Power 150mW
Current <100mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V
TTL frequency 0-100KHz
Dimension: 18mmx45mm
The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Off low, high open, normal status open
Three-wire input, the red wire is positive, black wire is negative, TTL signal yellow wire is positive
Feature:

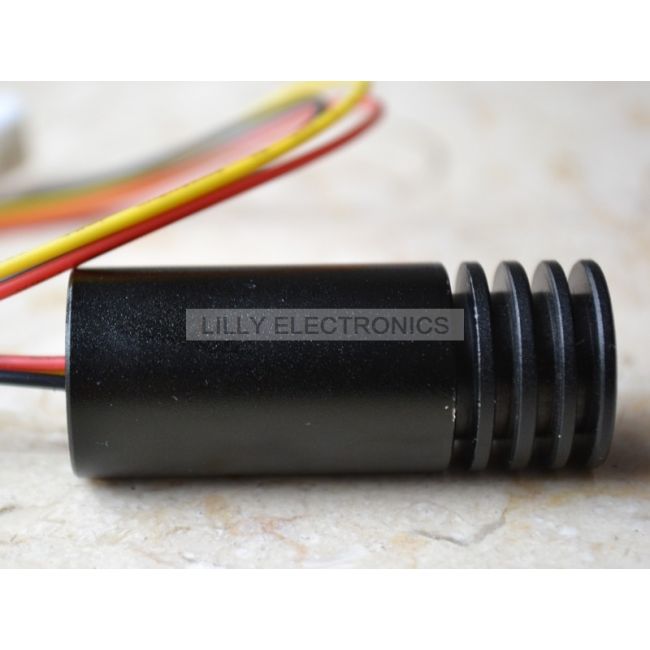

This 660nm 150mw laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Package:
1 x 660nm 150mw Infrared IR Laser Dot Module w/TTL 100KHz
