Specification:
Wave Length 532nm
Output Power 100mw
Operating Voltage 3.7V~4.2V
Operating Current <700 mA
Size ￠12×30mm(brass length) +20mm
Output Power 100mW (10% tolerance)
Lifespan >4000 hrs under proper use
Duty Circles 60 seconds on, 15 seconds off
Working Temperature ＋10 ℃~＋35 ℃
Feature
This laser module can not work for a long time if there is no cooling device to keep the laser working under 30℃.
Please protect the lens and keep it clean and avoid dust.
Please wear 532nm laser protection goggles to protect your eyes when working on this module.
Package:

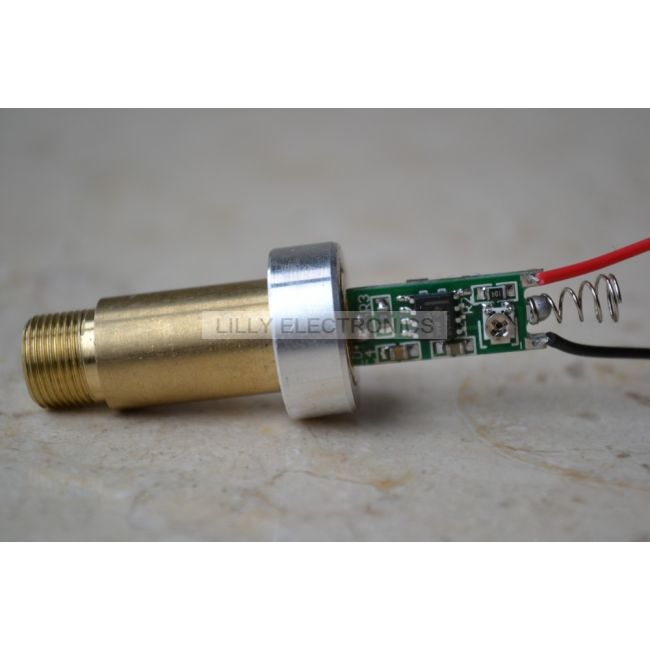

1 x 100mw Green Laser 532nm Diode Module 3.7v-4.2v w/ Heatsink
