Specification:
Laser head size: 69mmx30mmx30mm
Circuit Board size: 71.5mmx35.5mmx16mm
Wavelength: 445 nm/447nm/450nm
Output power: 1.6W-2W
Modulation frequency: TTL modulation
Operation Method: continuous work
Cooling Method: Fan Cooliing
Finish Color: Blue
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Input voltage: DC = 12V
Input Current: I<0.85A
Output Current: I <1.7A
Warm-up time: None
Operating Temperature: -10 °C ~ +40 °C
Storage temperature: -10 °C ~ +40 °C
Feature:
Notes:
The input voltage for this laser is 12V, input current <0.85A, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us!
Please protect your eyes before 450nm Blue ray!
This laser module brings TTL modulation, cannot work long time, please work on it with duty cycle
Please aviode direct eye exposure to the laser beam, please wear 450nm protection glasses when working on this laser module!
Package:

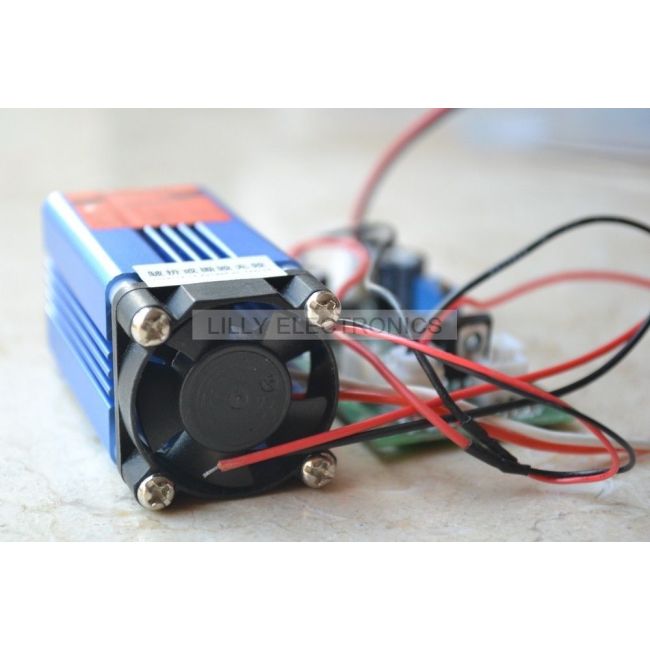

1 x 445nm 447nm 450nm 1.6W-2W Blue Laser Dot Module 12V+ TTL+ Fan Cooling
