905nm50mw Semiconductor Laser Coupled Fiber Optic Infrared Laser Module FC Connector Core 200um

905nm50mw Semiconductor Laser Coupled Fiber Optic Infrared Laser Module FC Connector Core 200um

520nm30mw Semiconductor Laser Coupled Fiber Optic Green Laser Module Lamp Head FC Connector Core 200um

520nm30mw Semiconductor Laser Coupled Fiber Optic Green Laser Module Lamp Head FC Connector Core 200um

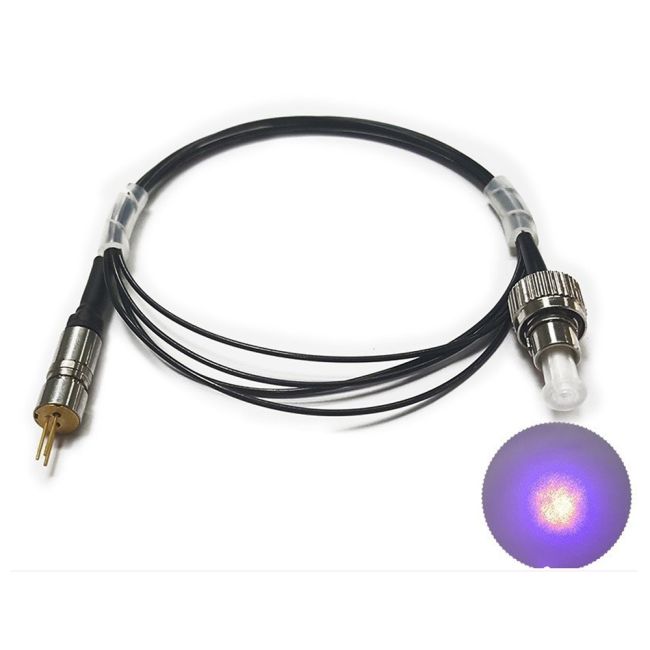

405nm20mw Semiconductor Laser Coupled Fiber Blue Violet Laser Module FC Connector Core 200um

Be the first to review this product
was $254.00 Special Price $229.00
Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.
Availability:
In stock
SKU
SHHO-GQ4050206D6-CU
Add to Wish List Add to Compare
Product Description:
Output wavelength: 405 ± 5NM
Output power: <20MW
Size: 6*16MM
Fiber Material: Quartz
Fiber core diameter: 200 microns
Fiber length: 1 meter
Connector type: FC connector
Spot shape: astigmatism
Coupling lens material: optical glass
Bare tube starting voltage: DC5V
Plus driver board voltage: DC6V
Circuit control mode: ACC constant current control board
Bare tube maximum working current: <60MA
Wire: UL1571 28#150MM red and black electronic wire
Working temperature: 0°C~+75°C
Storage temperature: -40 ° C ~ +85 ° C
Buying advice:
Please determine the distance used and reserve a certain length.
The default product does not have a board. If you want to add a board, please contact us.
Prompt:
Do not bend the fiber optic cable excessively to avoid fiber breakage.
Do not place heavy objects on the fiber.
When the dust jacket is not in use, try not to remove it to prevent dust pollution.
Do not pull too much to avoid the fiber connection falling off
Package:
940nm50mw Semiconductor Laser Coupled Fiber Optic Infrared Laser Module Lamp Head FC Connector Core 200um
