Specification:
1. Rated voltage: 24V
Inlet: 6mm Outlet: 6mm
2. Voltage: DC6V-24VDC
3. Zero-load rated current: 0.35A or less
4. Zero-load water capacity: 1980cc ± 10%
5. Pressure: 2.7Kg ± 10%
6. Rated current with Load: 0.8A ~ 1.2A
7. Rated Water Capacity with Load: 1320CC ± 10% / min
8. Suction: 1.0M
9. Noise: 50dB MAX (background noise 30dB, 0.5M or less)
10.Fluids: water, groundwater
11. Water temperature: 0 ° C ~ 100 ° C
12. Humidity: 45% ~ 85%
13. Weight: 138g
Warning:
Pumps cannot continuously work at high temperature.
Design of pumps can be customized according to user requirements.
Package:

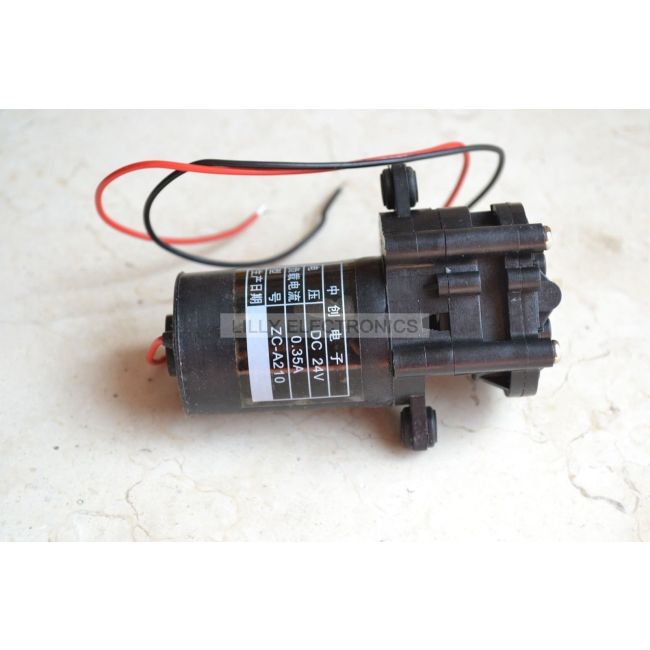

1 x 24V Mini Plastic Gear Pump Self-Sucking Water Pump (0-100℃) Food-Grade ZC-A210
