Details
Specification:
Wavelength 635nm
LD 200mw
Output Power >160mw
Working Voltage 12VAC DC
Working Current <300mA
Divergence Angle(mrad) <4mrad
Working Temperature -10℃- 30℃
TTL 0-5v DC/ 5V ON, OV OFF
Dimensions 18*18*53mm
Working Life >5000 Hours
Feature
Something buyer need to know:
1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. If you don't use TTL(Blue and White wires), please just leave them unconnected.
3. This is a laser module for Laser show. Please protect the lens and keep it clean and avoid dust.
4. Please wear 650nm laser protection goggles to protect your eyes when working on this module.
Package:

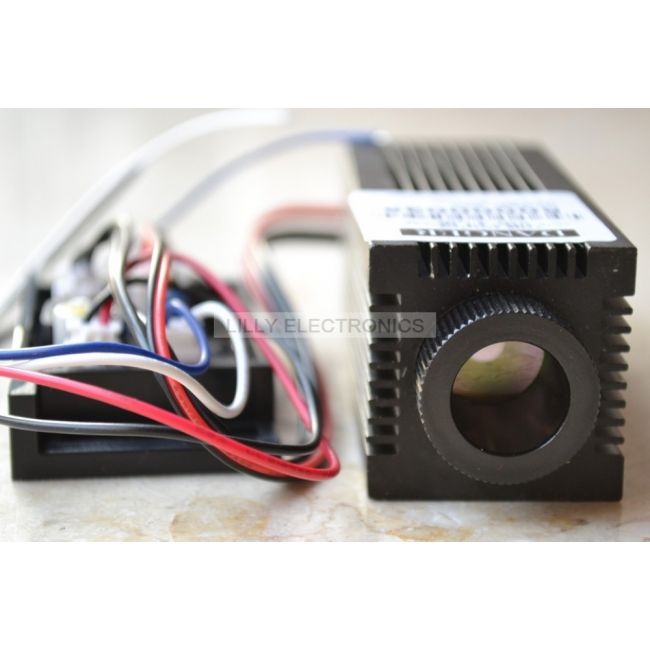

1 x 200mW 635nm Focusable Laser Dot Module w/TTL
Wavelength 635nm
LD 200mw
Output Power >160mw
Working Voltage 12VAC DC
Working Current <300mA
Divergence Angle(mrad) <4mrad
Working Temperature -10℃- 30℃
TTL 0-5v DC/ 5V ON, OV OFF
Dimensions 18*18*53mm
Working Life >5000 Hours
Feature
Something buyer need to know:
1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. If you don't use TTL(Blue and White wires), please just leave them unconnected.
3. This is a laser module for Laser show. Please protect the lens and keep it clean and avoid dust.
4. Please wear 650nm laser protection goggles to protect your eyes when working on this module.
Package:
1 x 200mW 635nm Focusable Laser Dot Module w/TTL
