Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.
Specification:
Output Power No
Wavelength 630nm~680nm
Focusable Yes
Material and Color Metal
Lens Glass/three layer lens/for 630nm~680nm laser diode
Dimensions 18 x 45 mm
Feature

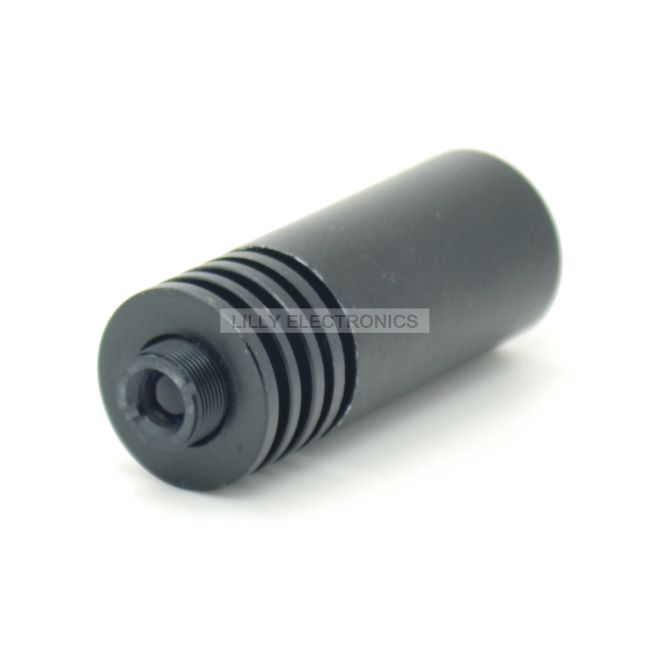

This is a house with coated focusable glass lens (three layers) and M9*0.5 frame for 5.6mm laser diode.
The lens is suitable for 630nm~680nm laser beam. The lens frame is made of metal.
Diode Suitable: 5.6mm diode (TO-18)
Frame Standard: M9*P0.5
Package:
1pc 18x45mm Diode housing with 630-680nm Glass Lens and spring
