Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Specifications:
|
Model No. |
LSR671NL |
|
Wavelength |
671 nm |
|
Spatial Mode |
TEM00 |
|
Output Power |
100mW(100-900mw can be customized) |
|
Operation Mode |
CW or Modulation |
|
Beam Spot Shape |
Circular, aspect ratio<1.1:1 |
|
Pointing Stability |
<0.05 mrad |
|
Beam Diameter(1/e2) |
<2.0 mm |
|
Beam Divergence(full angle) |
<1 mrad |
|
Power Stability |
<±5% per 4 hrs |
|
Temperature Stabilizing |
TEC |
|
Warm Up Time |
<5 minutes |
|
MTTF |
10,000 hrs |
|
Modulation |
0~30khz Analog or TTL (Optional, Note to us which do you need, we will ship Analog one as default) |
|
Power Supply (Optional, note to us which one you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default) |
A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|
B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
|
C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
1 Year (buyer paid both shipping ways)
Pleae let us know which kind of power supply do you need, we have 3 different kinds of power supply with pictures shown as below, we will send you the power supply instruction manual.
B. Lab type power supply LSR-PS-IIS
C. Lab Adjustable power supply LSR-PS-II
Pakage:

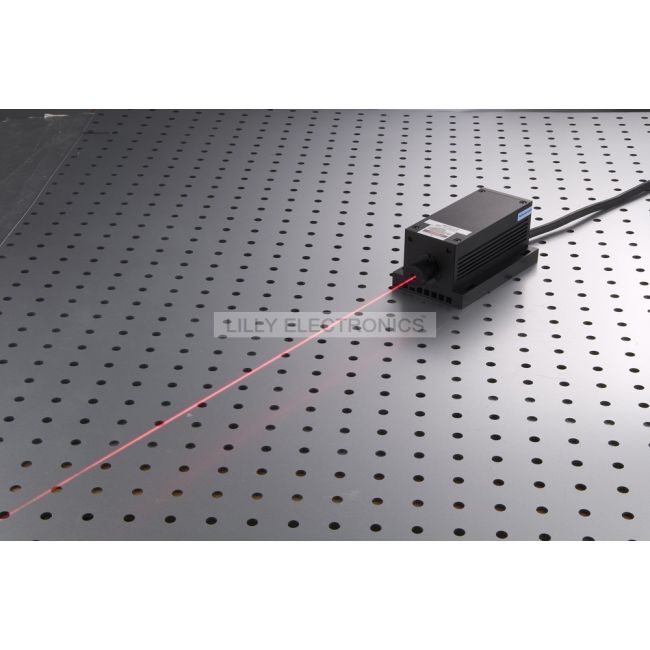

1 X 100mW 671nm Red Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
| Price | $421.50 |
|---|---|
| Power | 100mw |
| Price View | As Low as |
