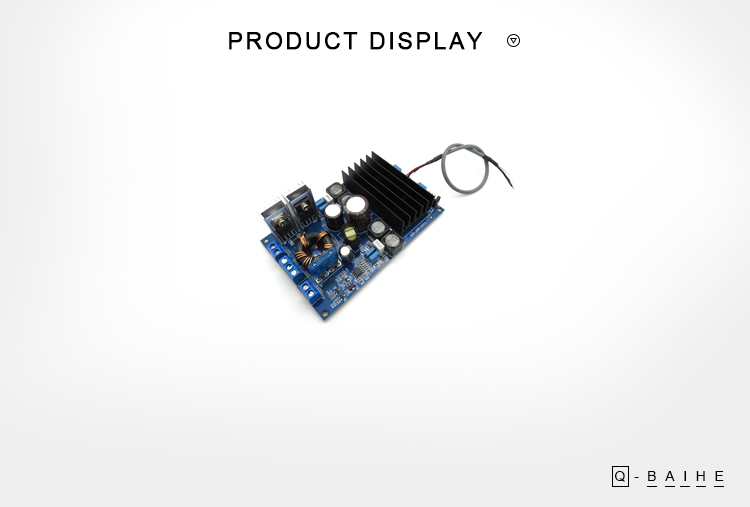

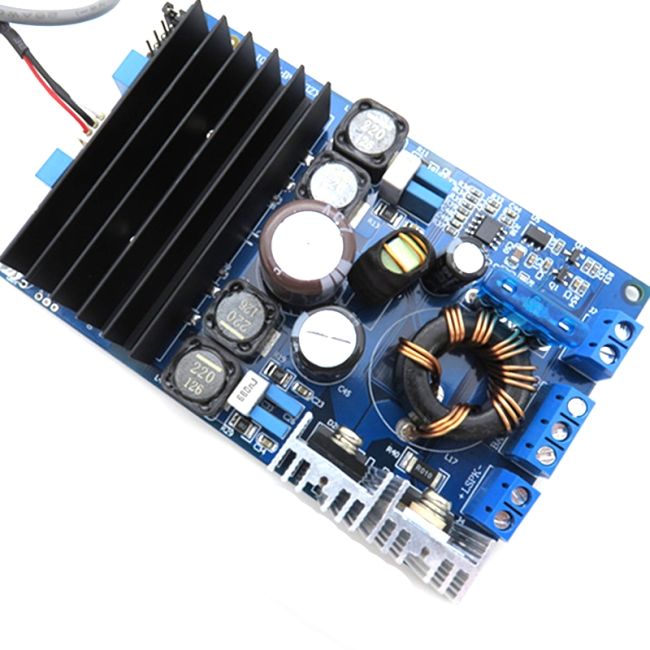

High Power Digital Power Amplifier Board 2x80W Battery Power Supply With Boost

Availability: In stock

Regular Price: $35.70

Special Price $31.48

Quick Overview

Based in Wuhan, Central China Hubei Province, Lilly Electronics is engaged in fabrication, sales and R&D of consumer electronics maninly in the industry of Laser, IC and LED! You are welcome to visit us for culture exchange and mutrual business development and progress.
OR

Details

Title:

D2-MINI HIFI USB Sound Card DAC Decoder ES9018K2M Non-ES9023 / PCM5102A

Specification:

1. Working voltage: DC10-15V (Note: You cannot use a small switching power supply, you must use a battery, the positive and negative poles cannot be reversed, and the output cannot be empty, otherwise the board will burn out at your own risk)
2. With ACC control, ACC connected to high level work, low level shutdown
3. The board comes with 4 gain adjustments, which is convenient to match different preamps and speakers
4. Maximum output: 80W+80W
5. Approximate board size: 110mm/width 69.5mm high 34MM
6. Weight: 124g

Note :

That this board can be powered by a battery or an ordinary 12v power adapter above 3A

Matching:

This power amplifier board can be used directly as a pure power amplifier. Just connect the battery. Do not use a small switching power supply, otherwise it will seriously damage the power supply. It can also be used with a tone board or a low-pass board to make a subwoofer power amplifier board.

Package:

1* Power Amplifier Board
